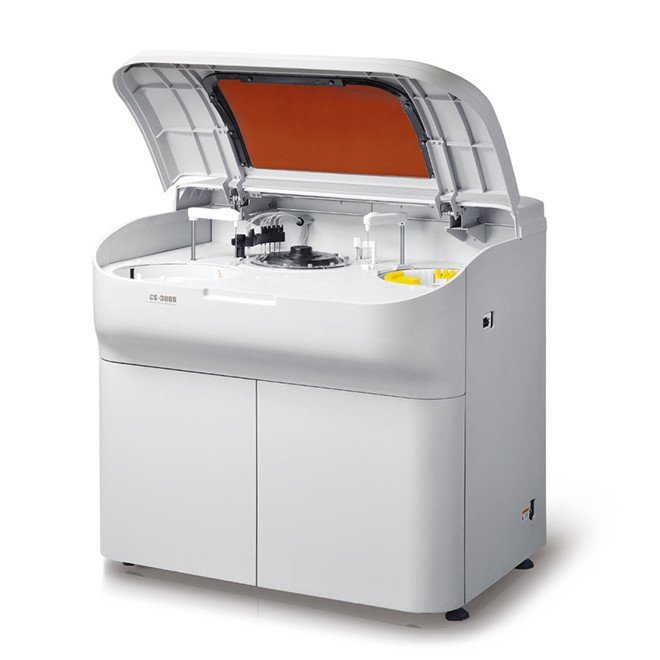

Auto-Chemistry Analyzers CS-300

Features of Auto-Chemistry Analyzer CS-300:

1.Rear spectrophotometry of holographic concave flat field grating, cluster-optical path, realizing super-micro volume detection of reaction solution.
2.60nm polished probe, liquid level detection and collision protection.
3.Automatic digital liquid level detection, stable performance, reducing probe surface contamination.
4.New design reagent disk, less reagent consumption and more test items.
5.Multiple function sample disk, original blood tube and multi-specification tubes compatible.
6.LIS interface, supporting remote maintenance.
7.User defined combined batch input of patient information, application to fast setting for special hospital, blood station and physical examination.

Specification of Auto-Chemistry Analyzer CS-300:

1.Overall performance
Equipment type: Fully automatic, discrete, STAT priority
Throughput: 300T/H for photometry tests only; 450T/H for only ISE tests
Test principle: Colorimetry, turbidimetries
Analysis method: End-point, kinetics, fixed-time, etc. support single/double wavelength and 1-2 multiple reagent item, liner and non-liner calibration

2.Sample reagent unit
Sample reagent position: 115sample positions, including 50 routine sample positions, 20 STAT position, 34 calibration positions, 8 QC positions, 3 detergent positions.
Sample cuvettes specification: Standard cup, original blood tube, multi-specification tube available (Φ12~16)mm×(25~100)mm
Sample volume: 2μl-35μl,0.1 stepping
Reagent volume R1:10μl-350μl,R2:10μl-200μl,1μlstepping
Sample reagent probe Liquid level detection and collision protection

3.Reaction unit
Reagent probe: with the function of liquid level detection and collision detection
Reaction cuvette 120 positions optical plastic cup
Total volume of reaction liquid  150μl～450μ, 1μl stepping
Reaction temperature: 37 degree
Reaction disk constant temperature: circulating water
Mixer: Mix immediately after adding reagent
Wastewater treatment with the function of concentrated waste liquid level alarming

4.Optical system
Light source 20W/12V halogen lamps.
Monochromator Grating photometer
Photo-electron road rear spectrometer
Wavelengths 340nm~800nm
Detector Photo diode LED array

5.Calibration and QC
Calibration method 1 point linear method, 2 point linear method, multiple point linear method, non-linear method
Calibration tracking: Automatic description calibration K-value trends
QC method: Real-time QC, daily QC and monthly QC
Out of control processing: Alarming for out of control sample, record lost control reason

6.Operating system
PC operating system Windows XP
Analysis control software Graphical operating software English version
Report printing Report formats support the user-defined mode, QC and state information etc.
System connection TCP/IP network connection, standard RS-232C

7.Others
Volume 1060mm×790mm×1150mm
Weight 230kg
Power supply Voltage AC 220V-22V, 50/60Hz, power 1.5kVA
