ECG300G-VET Electrocardiograph
- Three channel electrocardiograph for sampling ECG signals simultaneously
- Features thermal printing system for printing ECG waveform
- Sync sampling with digital signal processor for better quality ECG waveform
- Display 3/6/12-lead ECG waveform and print modes on one screen
- Multiple print modes and formats available for flexible use
- Built-in high-capacity memory for storing up to 1000 cases
- Supports multiple languages for interface and report printing
- SKU
- MDL-AAF799E160
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping

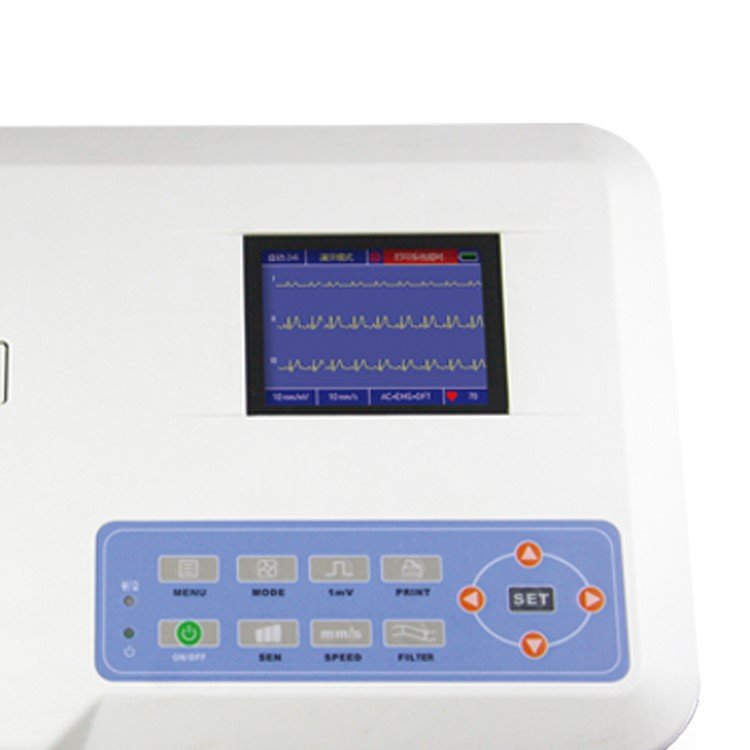

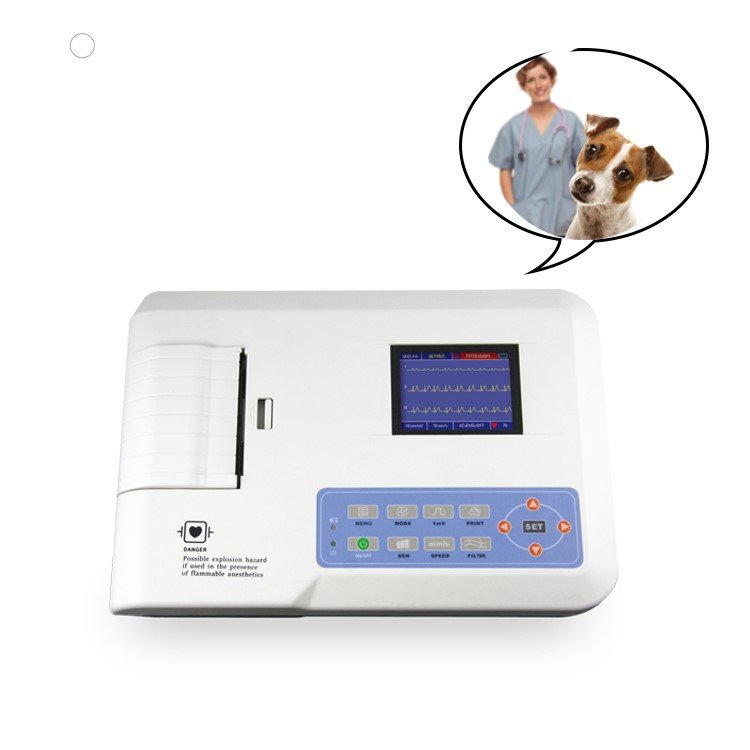

ECG300G-VET Electrocardiograph
Three-channel simultaneous ECG signal sampling with thermal printing system for high-quality waveform output. Features manual and auto-mode recording, intuitive user interface in multiple languages, and flexible power supply options for veterinary diagnostic applications.
Clinical overview
The ECG300G-VET is a three-channel electrocardiograph designed specifically for veterinary cardiac diagnostics. It performs simultaneous ECG signal sampling with digital signal processing to deliver superior waveform quality through integrated power frequency, baseline, and EMG filters. The device combines thermal printing technology with an intuitive user interface to streamline cardiac assessment workflows in veterinary practice.
With support for multiple print modes, flexible power supply options (AC and DC), and multilingual interface capability, the ECG300G-VET adapts to diverse clinical environments and international veterinary practices. The built-in case database management system stores up to 1000 ECG records, enabling comprehensive patient history review and statistical analysis for improved diagnostic confidence.
Key features & surgeon benefits
Advanced Digital Processing
- Synchronous 3-channel sampling for simultaneous signal capture
- Integrated power frequency, baseline, and EMG filters
- Enhanced waveform clarity for accurate rhythm interpretation
Flexible Recording & Output
- Manual and automatic recording modes with intuitive prompts
- 12 multi-format print options including rhythm leads
- Adjustable waveform length and timing print function
High-Capacity Case Storage
- Stores up to 1000 ECG cases for review and analysis
- Comprehensive 3/6/12-lead waveform display on single screen
- Convenient comparative diagnostics and statistical review
Multilingual & Versatile Power
- 14 interface languages including English, Spanish, German, Russian
- AC and DC power supply options for clinic flexibility
- Optional rhythm lead for abnormal heart rate observation
Technical specifications
| Indications | Cardiac rhythm monitoring and diagnosis in veterinary medicine |
|---|---|
| Sampling | 3-channel simultaneous ECG signal sampling |
| Display Modes | 3/6/12-lead ECG waveform display with print settings |
| Print Formats | 12 multi-format options: 4×3, 3×4+1, 3×4, 2×6+1, 2×6, 3-2+1, 3-2, 1×12+1, 1×12, rhythm 4, rhythm 3, rhythm 2 |
| Memory Capacity | Up to 1000 ECG cases |
| Printing System | Thermal printing with adjustable waveform length and timing function |
| Filters | Power frequency filter, baseline filter, EMG filter |
| Power Supply | AC and DC options |
| Languages | Chinese, English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Kazak Tili, Russian, Ukrainian, Serbian, Slovenian |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG300G-VET Main Unit | Three-channel electrocardiograph with thermal printer and digital display | 1 |

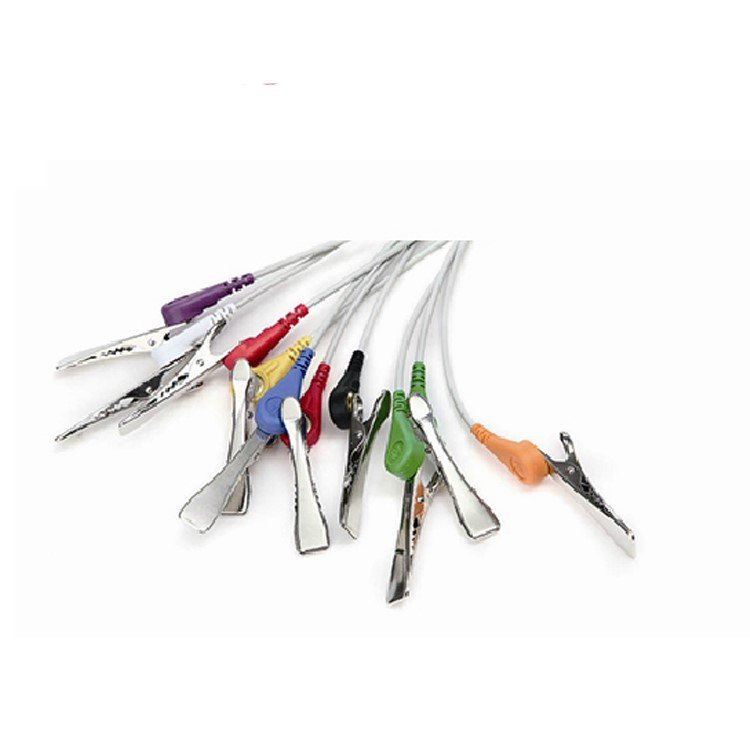

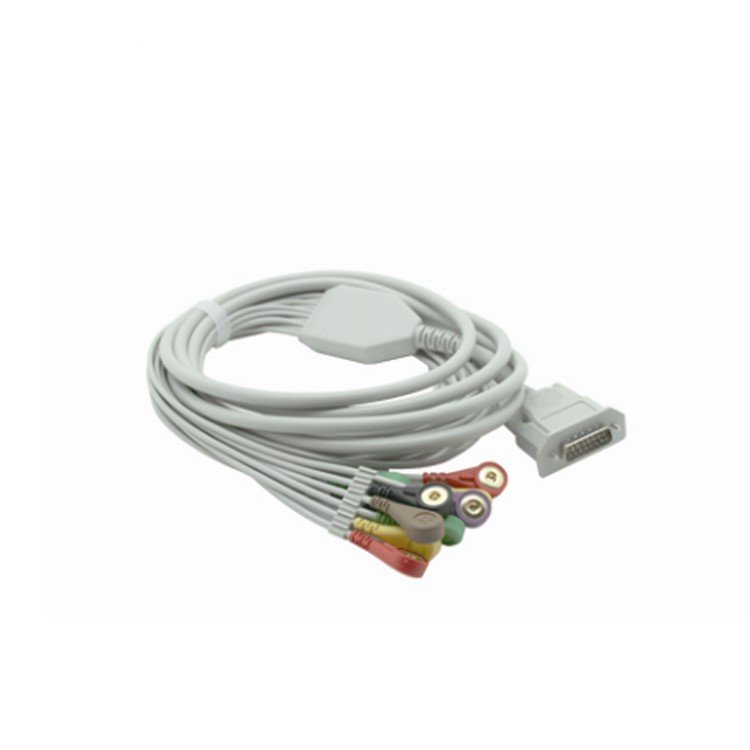

| ECG Lead Set | Standard 3-channel ECG leads with connectors | 1 |
| Power Cable | AC/DC power supply cable | 1 |
| Thermal Paper | ECG recording paper roll | 1 |
| User Manual | Multilingual operation and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss ECG300G-VET specifications, pricing, and delivery timelines for your veterinary practice or clinic network.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

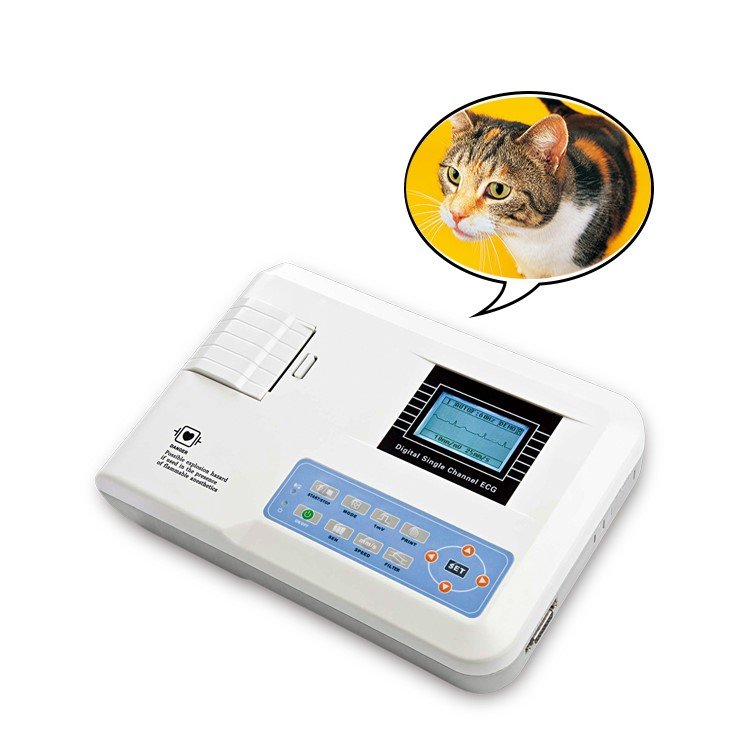

ECG100G-VET Electrocardiograph
- Single channel electrocardiograph for veterinary use - Thermal printing system for ECG waveform - Alerts for "Lead off" and "Lack of paper" - Multi-language interface for convenience - Manual or auto-mode for recording ECG waveform - Digital signal processor for quality waveform - High-resolution thermal-array output system with no adjustment - Real-time annotation of ECG waveform - Long standby time and continuous recording capabilities

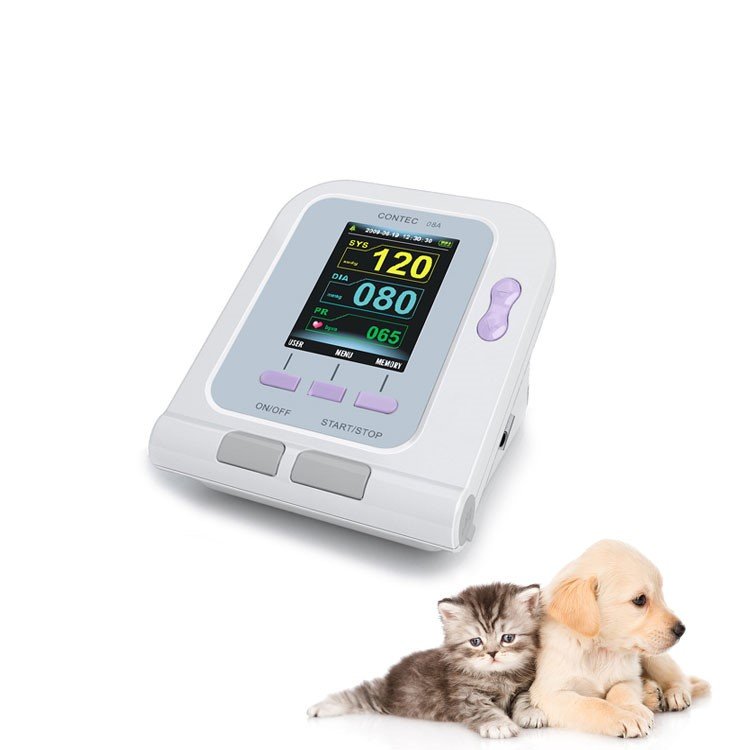

CONTEC08A-VET Electronic Sphygmomanometer
- CONTEC08A-VET Electronic Sphygmomanometer for animals - High-definition color LCD display for strong visibility - Data storage for up to 100 groups of data - One-touch operation for automatic blood pressure measurement - Physiological alarm function with customizable alarm limits - Dual units: Kpa/mmHg for user preference - Three cuff modes: large, medium, small for different animal sizes

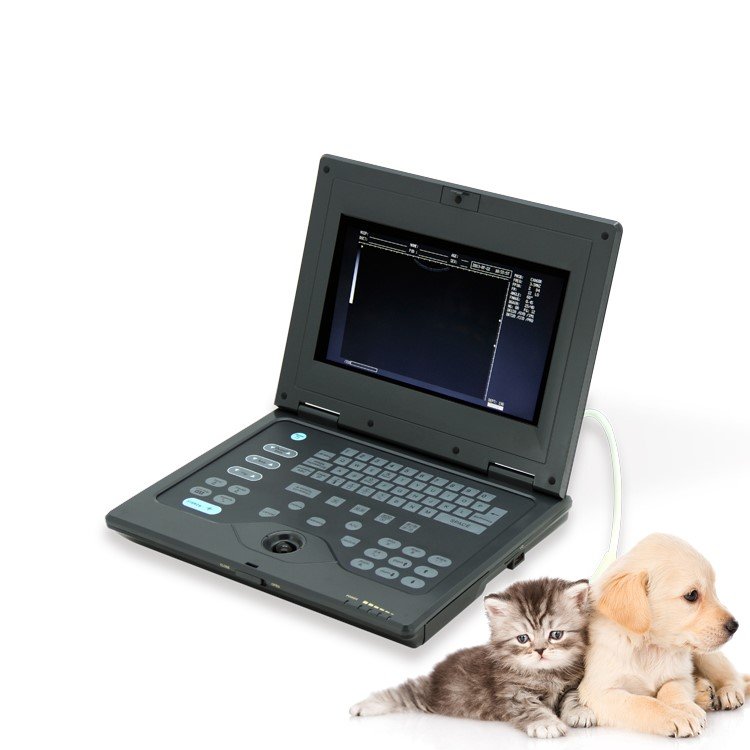

CMS600P-VET B-Ultrasound Diagnostic System
- High-resolution LCD screen for clear and stable image quality - Multiple probes available for different diagnosis needs - Pseudo-color display function for enhanced imaging - PAL-D video output for external device connections - Real time image upload to computer via high speed USB2.0 port - Digital beam-forming technology for precise imaging - Suitable for obstetric measurements in various animals
CMS60D-VET Veterinary Clinic Equipment Pulse Oximeter Veterinary Instrument with Tongue SpO2 Probe
- Small, lightweight, and portable veterinary pulse oximeter - Easy to operate with low power consumption - Displays SpO2 value, PR value, and pulse waveform - Adjustable screen brightness and PR sound indication - Review function and clock function included - Battery status indication with audible alerts for low battery - Ability to store and upload SpO2 and PR values

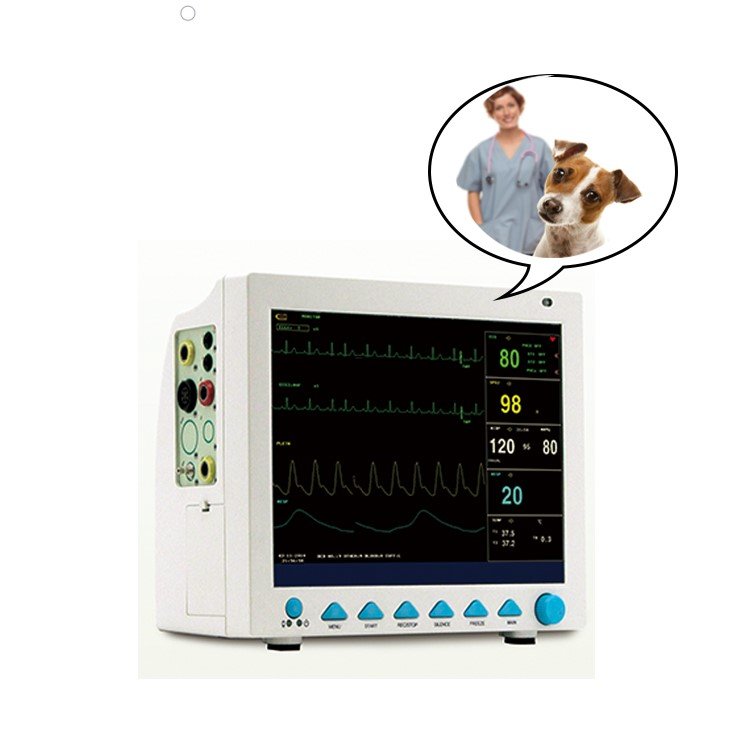

CMS8000VET Veterinary Monitor
