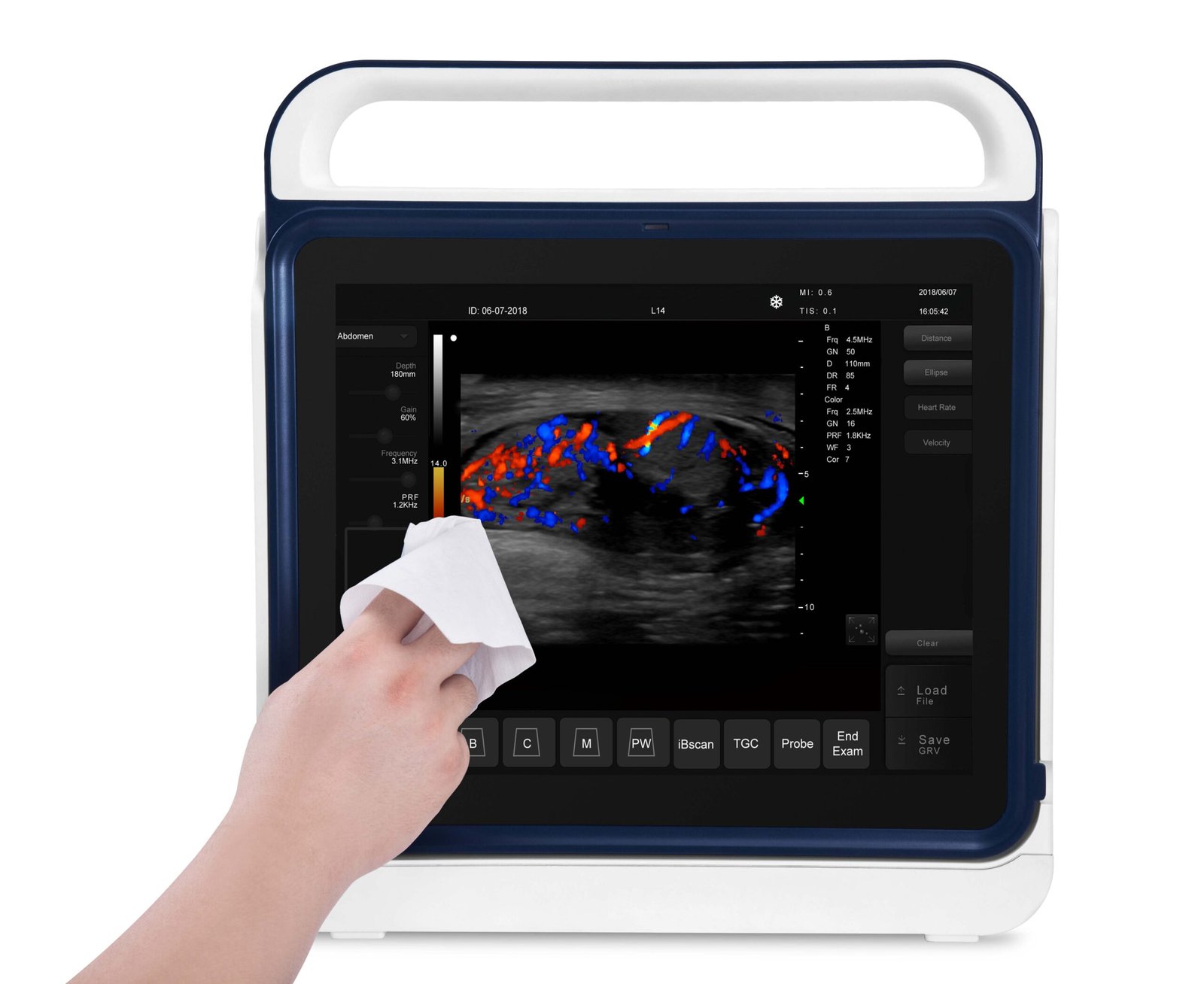

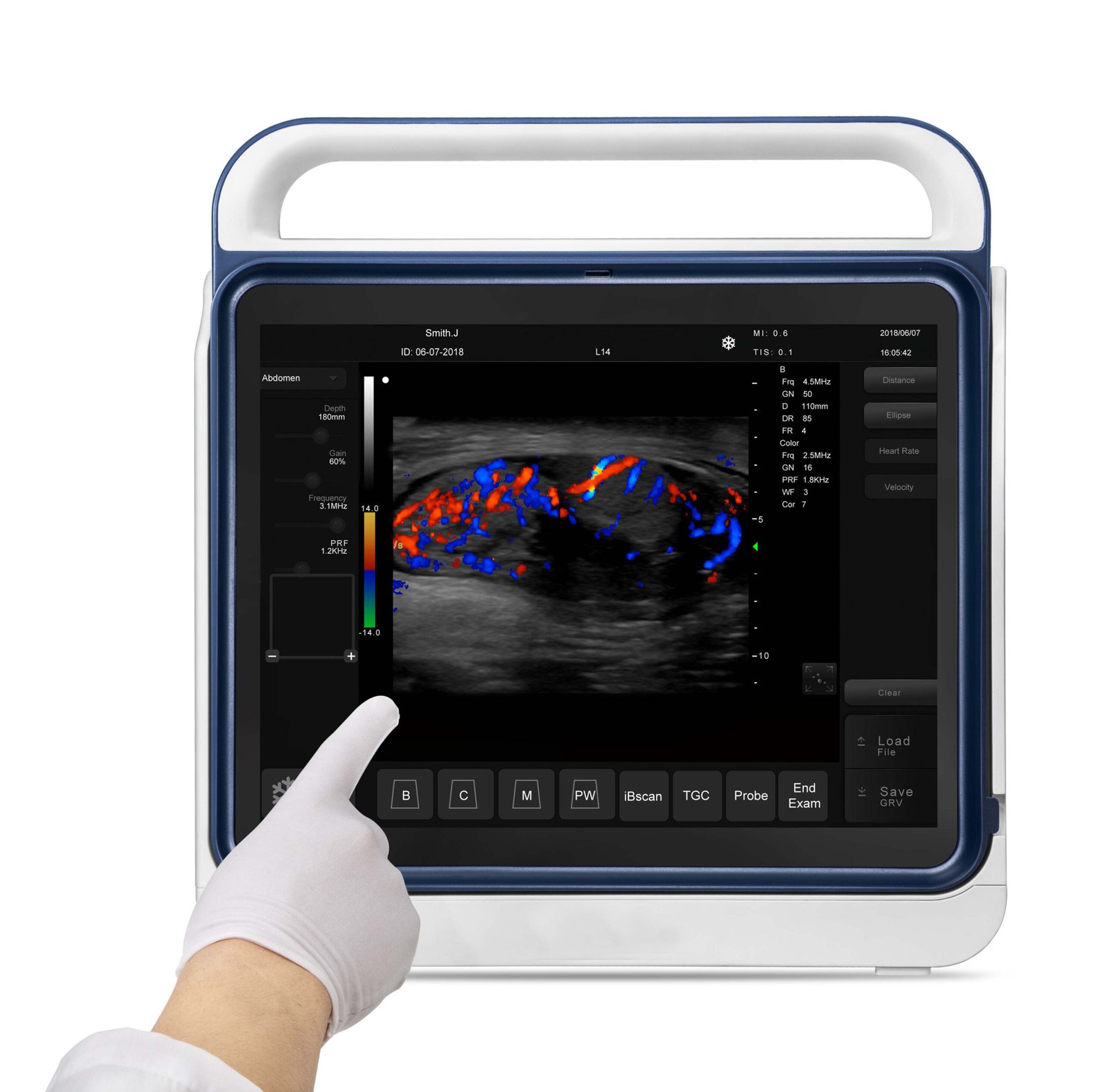

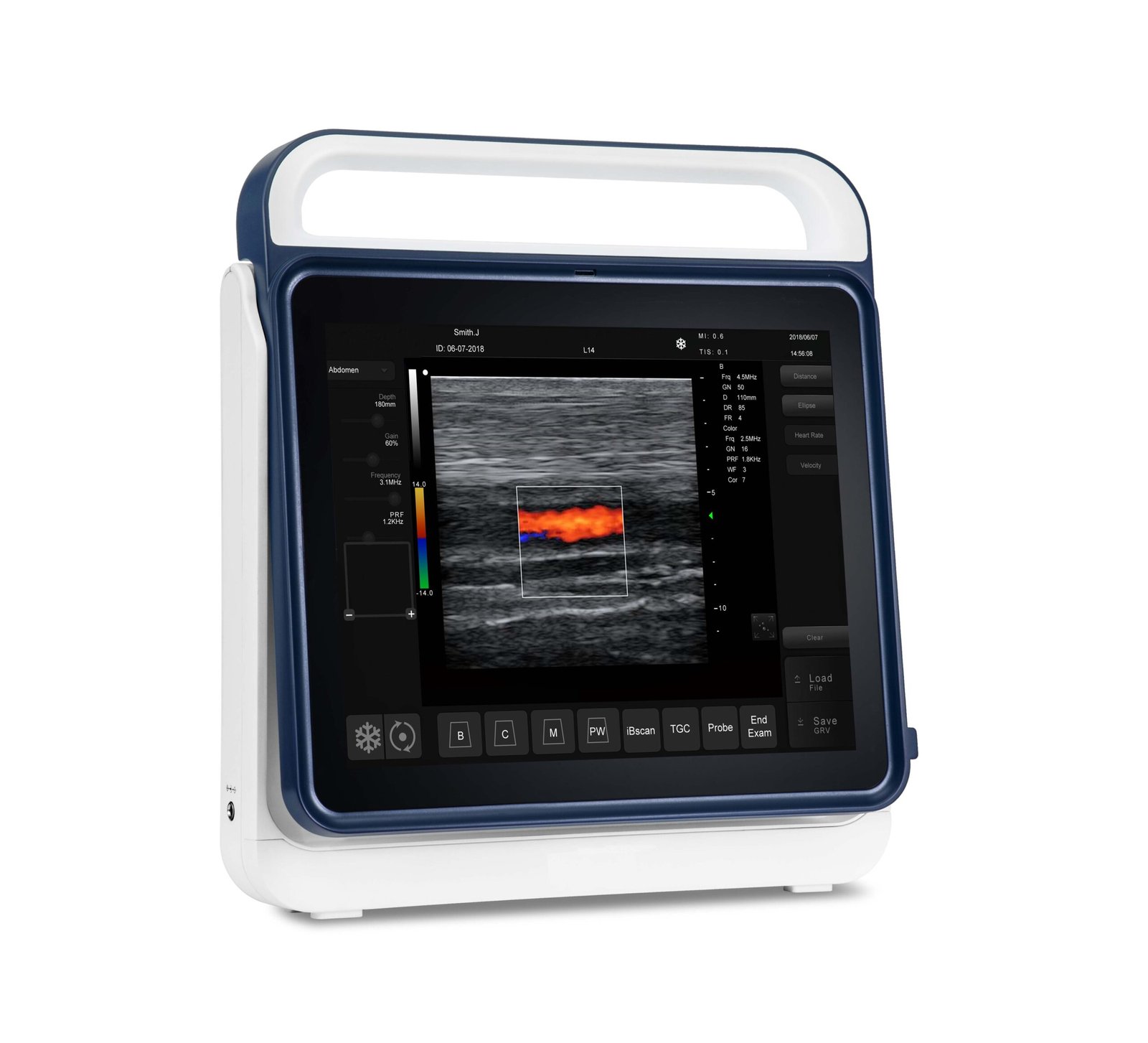

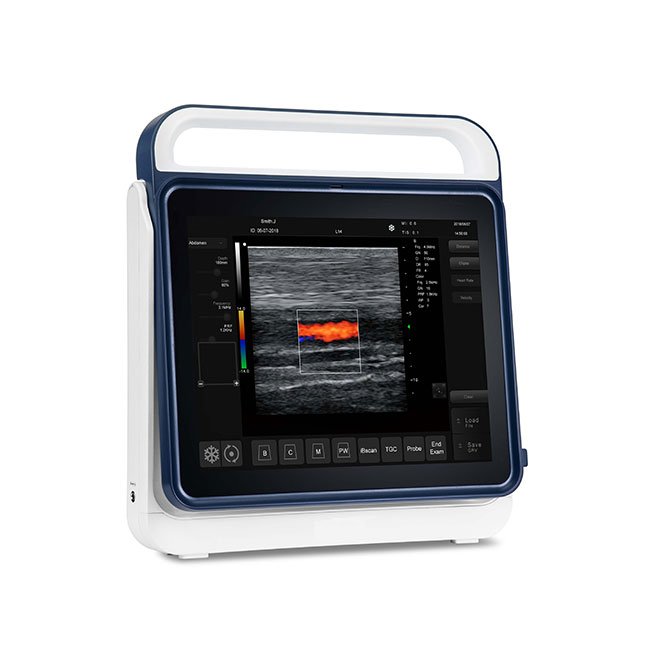

Pad Touch Veterinary Series Ultrasound System Machine MDLVU45
- Cutting-edge 64-beam imaging for high-quality scans
- Supports B/C/D triplex mode and Dual live imaging
- Offers various imaging modes: B/C, B/M, B/PW
- Transducer options include Convex Array, Linear Array, and Rectal Array
- Wide transducer frequency range of 2-15 Mhz
- Adjustable time line display formats for flexibility
- Multilingual interface with language options
- Suitable for various veterinary applications: equine, large animal, small animal, zoo mammal, and marine mammal medicine
- SKU
- MDLVU45
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Pad Touch Veterinary Series Ultrasound System MDLVU45
Advanced 64-beam veterinary ultrasound platform delivering real-time diagnostic imaging for equine, large animal, small animal, and marine mammal applications. High-speed Windows architecture with multi-mode imaging and comprehensive transducer support for comprehensive body scanning.
Clinical overview
The Pad Touch Veterinary Series MDLVU45 is a comprehensive ultrasound platform engineered for modern veterinary diagnostics across diverse animal species and clinical settings. Built on a high-speed Windows architecture, the system delivers advanced 64-beam imaging technology capable of processing up to 4500 frames per second, enabling real-time visualization of anatomical structures with exceptional clarity and temporal resolution.
Designed for equine, large animal, small animal, zoo mammal, and marine mammal medicine, the MDLVU45 supports comprehensive body scanning including abdominal, reproductive, gynecological, and cardiac imaging. The system is ideal for veterinary clinics, research departments, livestock farms, and zoological facilities requiring portable yet powerful diagnostic capability. Multi-language software support and flexible transducer connectivity ensure seamless integration into diverse clinical workflows worldwide.
Key features & surgeon benefits
Comprehensive Multi-Mode Capability
- B/C/D triplex mode with dual live imaging (B/C, B/PW, B/M)
- Dual-split display formats for simultaneous multi-parameter assessment
- Adjustable timeline display (1:1, 1:2, Full) for flexible workflow integration
- 256 grayscale levels for superior image contrast and diagnostic detail
Flexible Array Configuration
- Convex, Linear, and Rectal array options for diverse anatomical access
- Frequency range 2–15 MHz for variable tissue penetration and resolution
- Scanning depth up to 351 mm for comprehensive body wall and deep structure imaging
- Single active transducer connector with reserved extension ports for future expansion
High-Speed Processing Architecture
- 64-beam imaging technology for enhanced spatial resolution
- Up to 4500 frames per second processing capability
- Real-time image acquisition and display with minimal latency
- Robust Windows platform for reliable clinical operation
Global Deployment Ready
- Multi-language software support (English, Spanish, Russian, Italian, German, French, Korean, Polish, Romanian, Chinese, and more)
- Flexible keyboard input configuration for regional requirements
- Full ODM customisation available for OEM partnerships

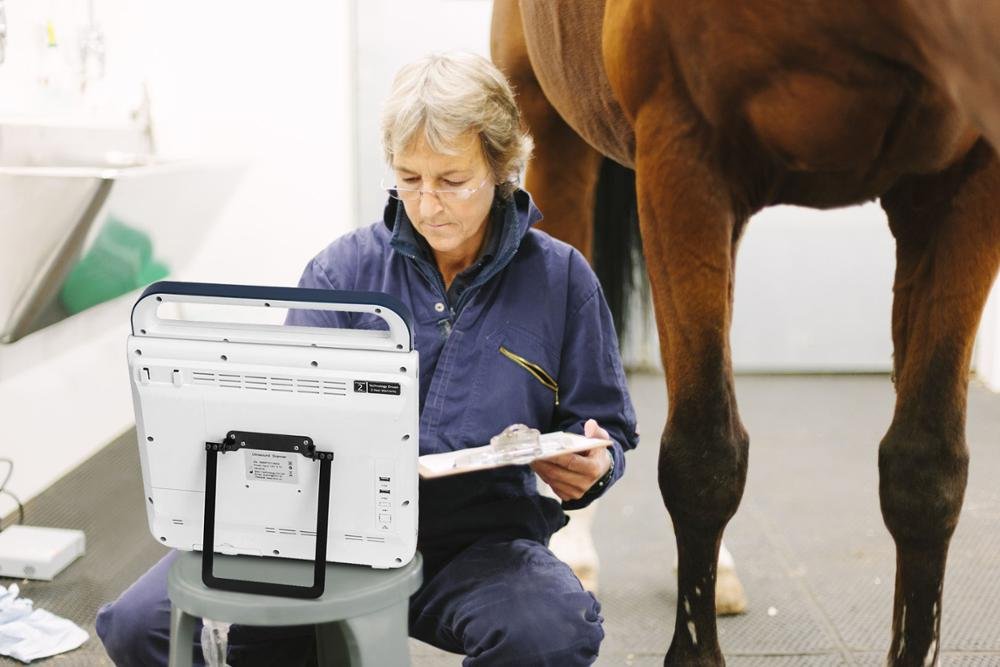

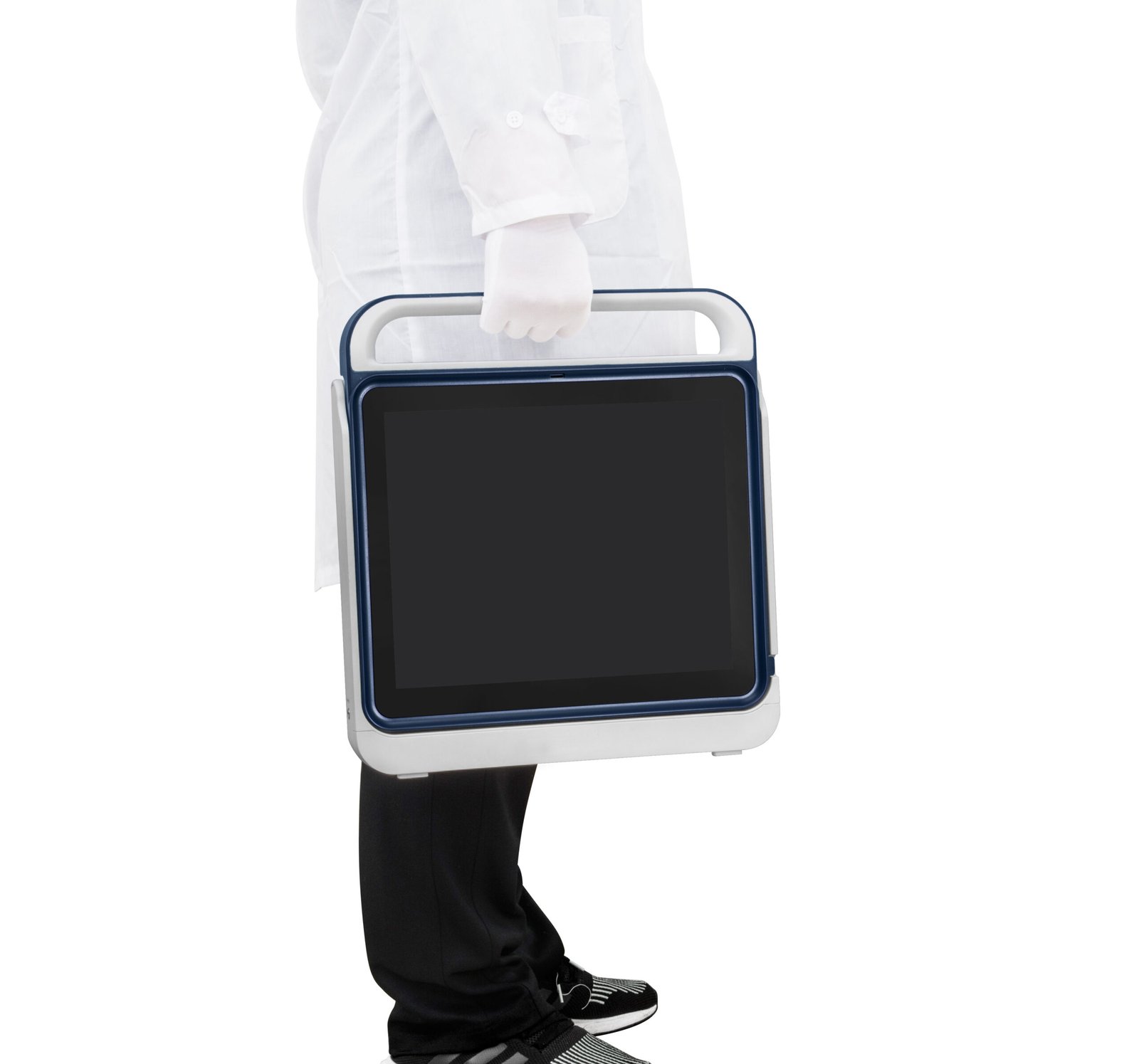

- Portable design suitable for clinic, farm, and field applications
Technical specifications
| Indications | Equine, large animal, small animal, zoo mammal, and marine mammal diagnostics; abdominal, reproductive, gynecological, and cardiac imaging |
|---|---|
| Imaging Architecture | 64-beam platform; up to 4500 frames per second |
| Imaging Modes | B/C/D triplex; dual live (B/C, B/PW, B/M); dual-split display |
| Grayscale Levels | 256 |
| Transducer Types | Convex Array, Linear Array, Rectal Array |
| Frequency Range | 2–15 MHz |
| Scanning Depth | Up to 351 mm |
| Transducer Connectors | One (1) active transducer connector port; extended connector ports reserved |
| Display Formats | Adjustable timeline (1:1, 1:2, Full) |
| Operating Temperature | 0–40 °C |
| Operating Humidity | 30–85% (non-condensing) |
| Operating Pressure | 700–1060 hPa |
| Storage Temperature | −20–55 °C |
| Storage Humidity | 30–95% (non-condensing) |
| Software Languages | English, Spanish, Russian, Italian, German, French, Korean, Polish, Romanian, Chinese, and more (ODM support) |
| Keyboard Input | English, Spanish, and more (ODM support) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Console Unit | MDLVU45 Ultrasound System with integrated display and controls | 1 |
| Convex Array Transducer | Multi-frequency convex probe for abdominal and large animal imaging | 1 |
| Linear Array Transducer | High-frequency linear probe for small parts and superficial structures | 1 |

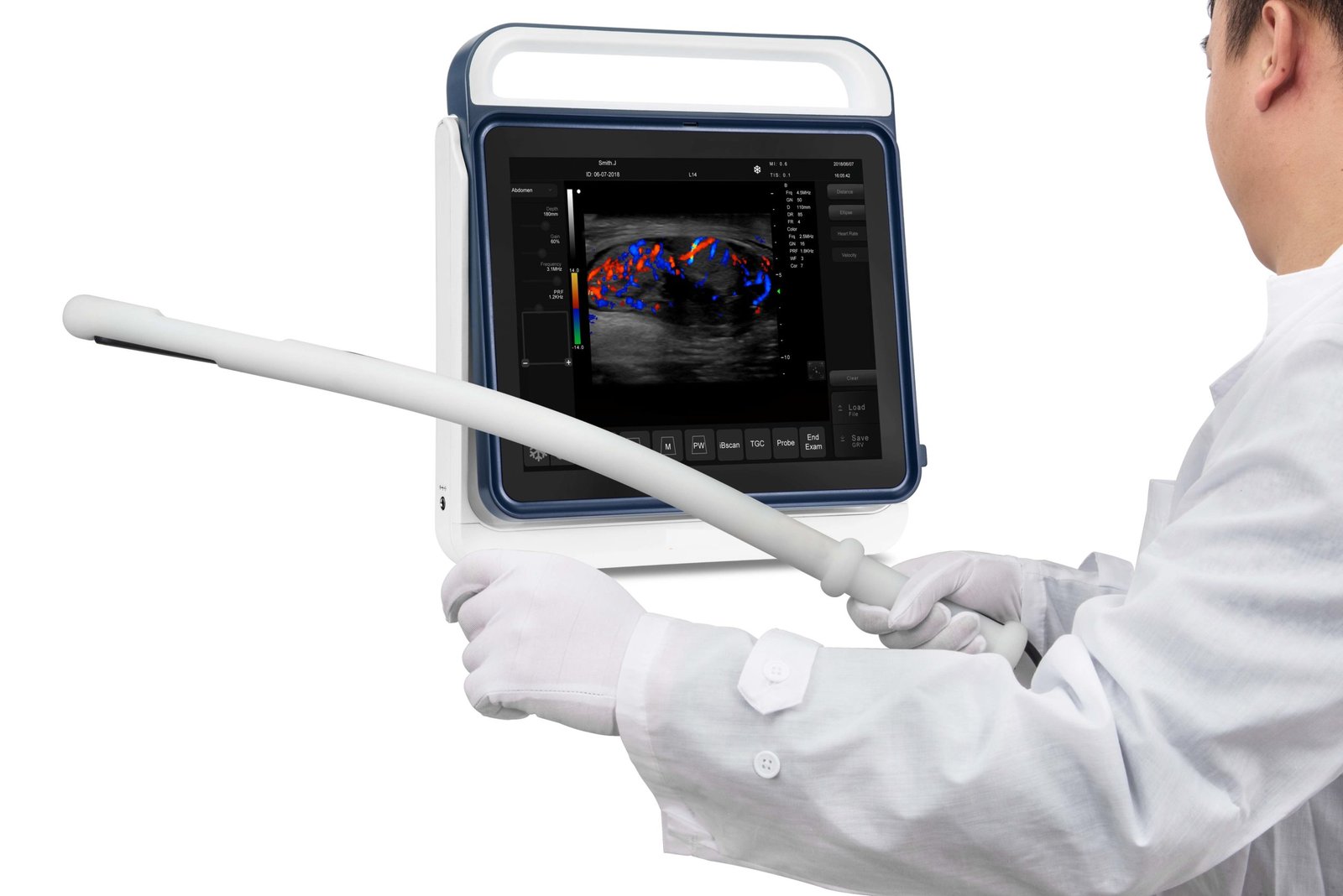

| Rectal Array Transducer | Specialized rectal probe for reproductive and pelvic imaging | 1 |
| Transducer Cables | Connection cables for all transducer types | As applicable |
| Power Supply | Medical-grade power adapter and cables | 1 |
| User Documentation | Operator manual and technical reference guides (multi-language) | 1 set |
| Warranty Card | 2-year manufacturer warranty documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, pricing, and delivery timelines for the MDLVU45. We offer flexible ordering options, comprehensive technical support, and full customisation for OEM partnerships.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
