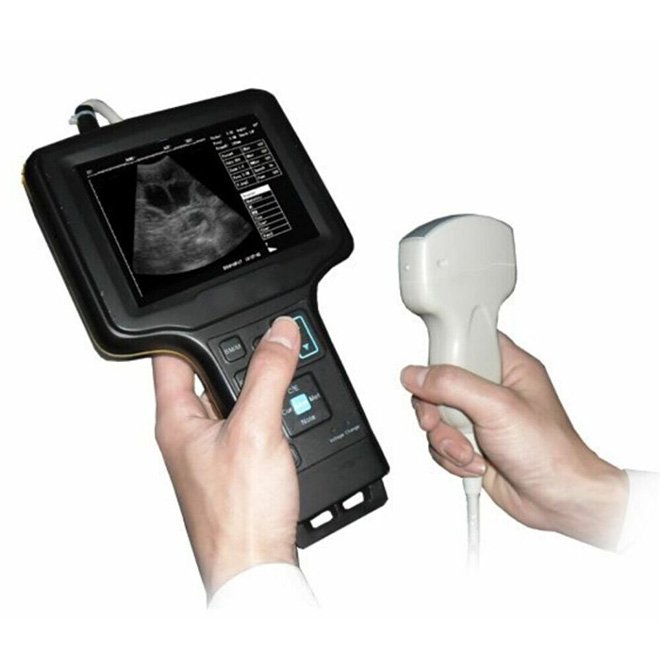

Portable Veterinary Ultrasound Scanner Machine Waterproof MDLVU31
- Portable veterinary ultrasound scanner machine MDLVU31
- Electronic convex scanning mode
- Comes with a 3.5MHz convex probe
- Features a 5-inch TFTLCD screen
- Display modes include B and B+B
- Adjustable brightness and contraction
- Offers various measurements like distance, perimeter, area, and volume
- Ideal for use on sow, sheep, goat, and alpaca
- Main unit warranty for 18 months, probes for 12 months
- SKU
- MDLVU31
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Portable Veterinary Ultrasound Scanner Machine Waterproof MDLVU31
Compact, waterproof portable ultrasound scanner engineered for field and farm use. Features a 3.5MHz convex probe, 5-inch TFT LCD display, and up to 22 hours of continuous operation. Ideal for rapid assessment of livestock including sows, sheep, goats, and other agricultural animals.
Clinical overview

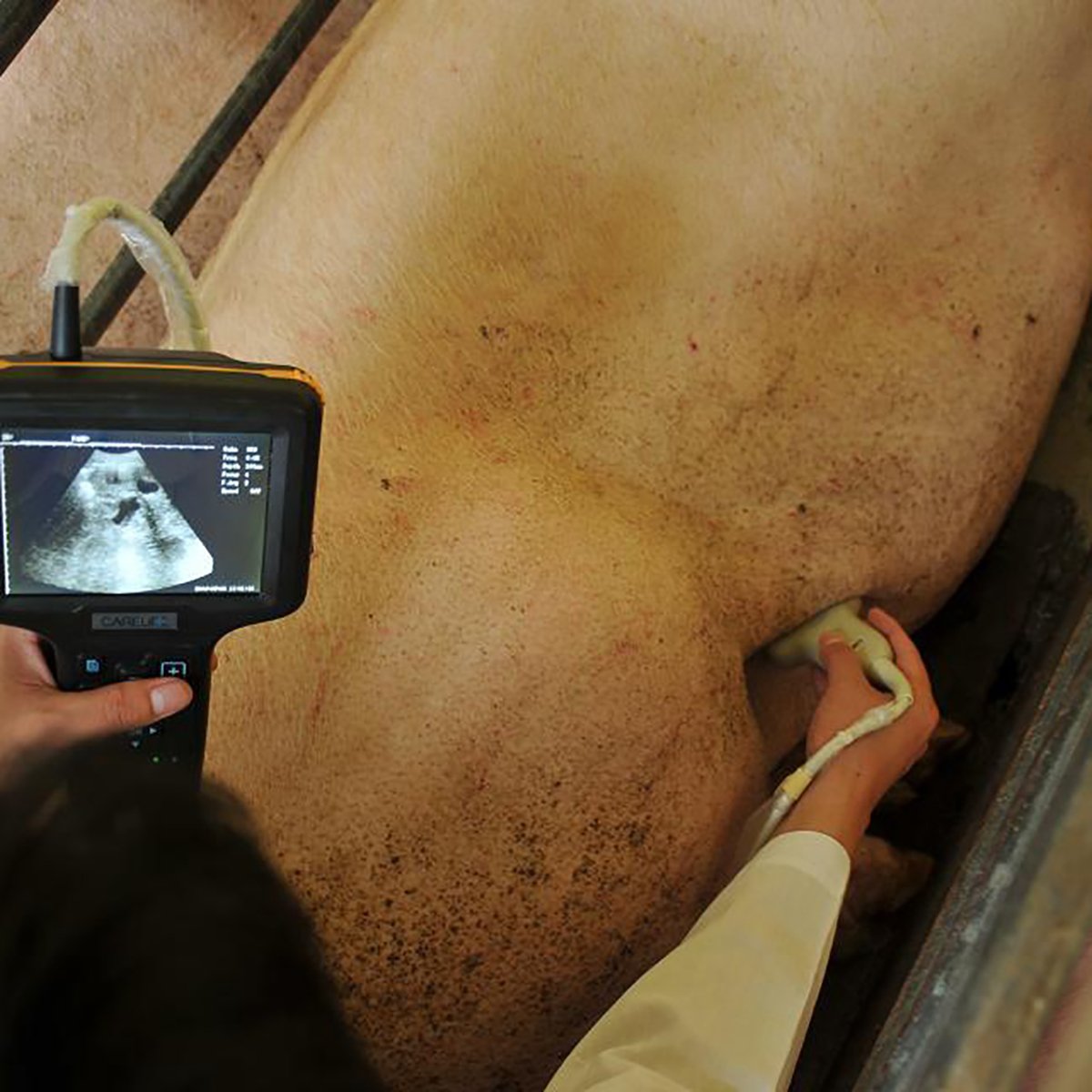

The MDLVU31 is a purpose-built portable ultrasound scanner for veterinary field diagnostics. Its waterproof construction and lightweight design (850g including battery) make it ideal for on-farm use, enabling rapid assessment of pregnancy status, organ pathology, and tissue integrity in livestock. The 5-inch TFT LCD screen with adjustable brightness ensures clear imaging in variable lighting conditions, while dual scanning modes (B and B+B) provide flexibility for different diagnostic scenarios.
With a maximum imaging depth of 190mm and selectable frequencies (2.5MHz, 3.5MHz, 5.0MHz), the MDLVU31 accommodates diverse animal sizes and tissue types. Extended battery life of up to 22 hours supports extended field campaigns, and integrated 28GB storage enables on-site image archiving and review. The system is optimised for use with sows, sheep, goats, and other agricultural species, making it an essential tool for veterinary practitioners in rural and remote settings.
Key features & surgeon benefits
Lightweight Field-Ready Design
- Only 850g including battery — easily carried to remote locations

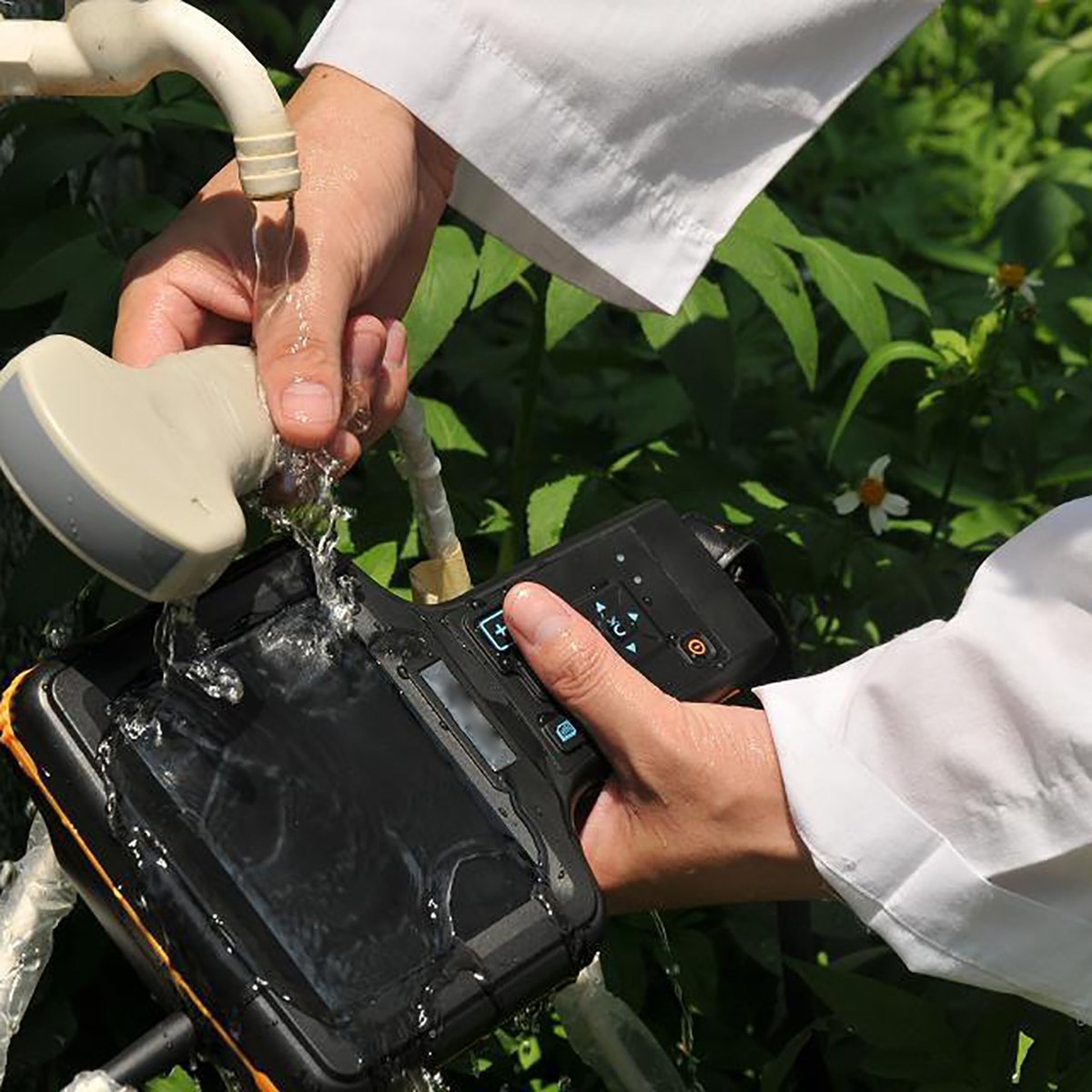

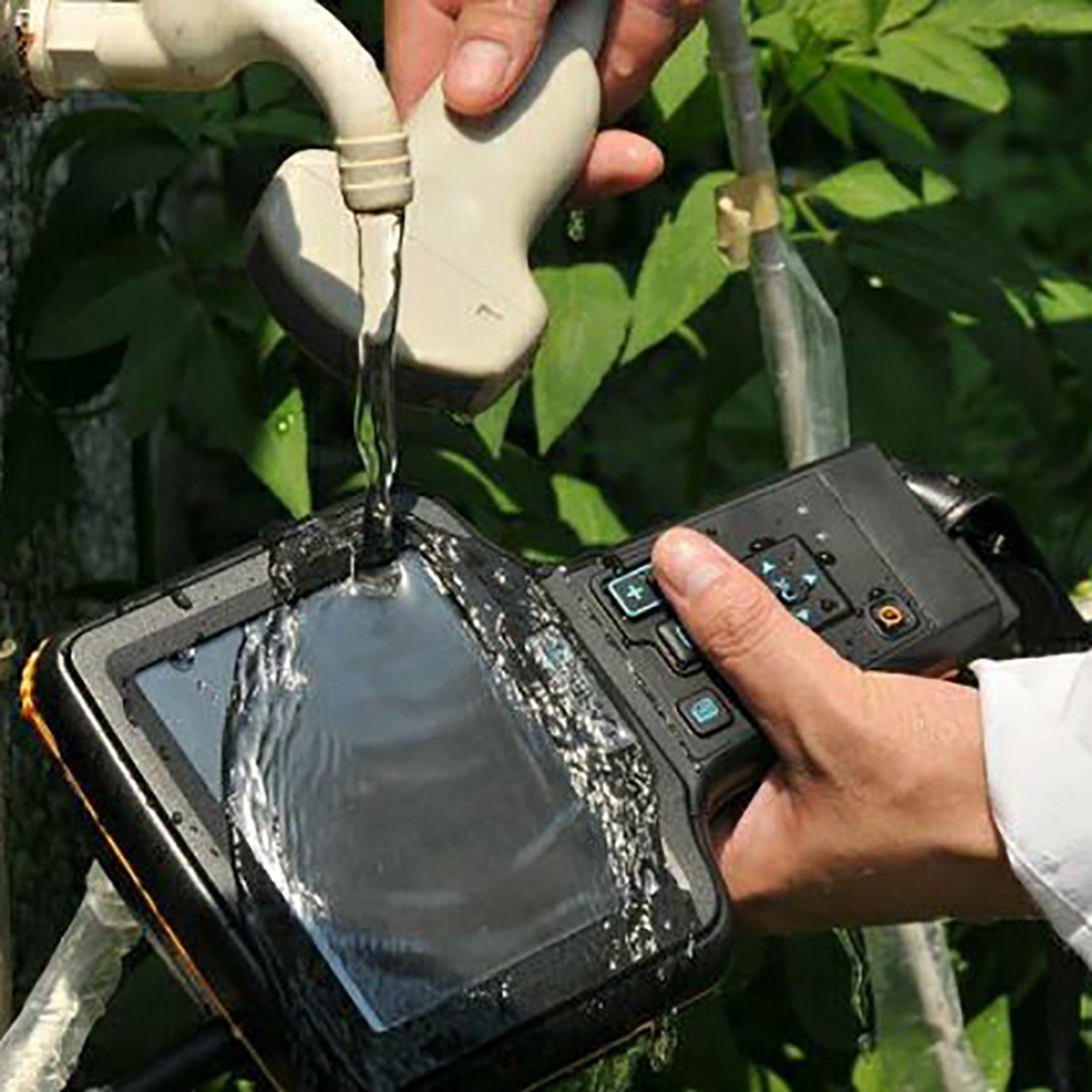

- Waterproof housing withstands farm and outdoor environments
- Compact form factor fits into standard veterinary field kits
Clear, Adjustable Display
- 5-inch TFT LCD screen with brightness adjustment for variable lighting
- B and B+B scanning modes for comprehensive tissue assessment
- 190mm maximum depth suitable for most livestock applications
Extended Operating Time
- Up to 22 hours continuous operation on single charge
- 3000mAH/7.4V battery supports full-day field campaigns
- Rapid charging minimises downtime between uses
Integrated Storage & Connectivity
- 28GB U-Disk storage for on-site image archiving
- USB 2.0 and video ports for data transfer and external display
- Distance, perimeter, area, and volume measurement tools
Technical specifications
| Scanning Mode | Electronic Convex |
|---|---|
| Standard Probe | 3.5MHz Convex |
| Frequency Options | 2.5MHz, 3.5MHz, 5.0MHz |
| Display | 5-inch TFT LCD |
| Display Modes | B, B+B |
| Maximum Depth | 190mm |
| Weight | 850g (battery included) |
| Battery Capacity | 3000mAH / 7.4V |
| Continuous Operating Time | Up to 22 hours |
| Image Storage | 28GB U-Disk |
| Connectivity | USB 2.0, Video output |
| Brightness Control | Adjustable |
| Gain Adjustment | Adjustable (Near, Middle, Far) |
| Measurement Functions | Distance, Perimeter, Area, Volume |
| Applications | Sow, Sheep, Goat, and other livestock |
| Warranty | Main unit 18 months; Probes 12 months |

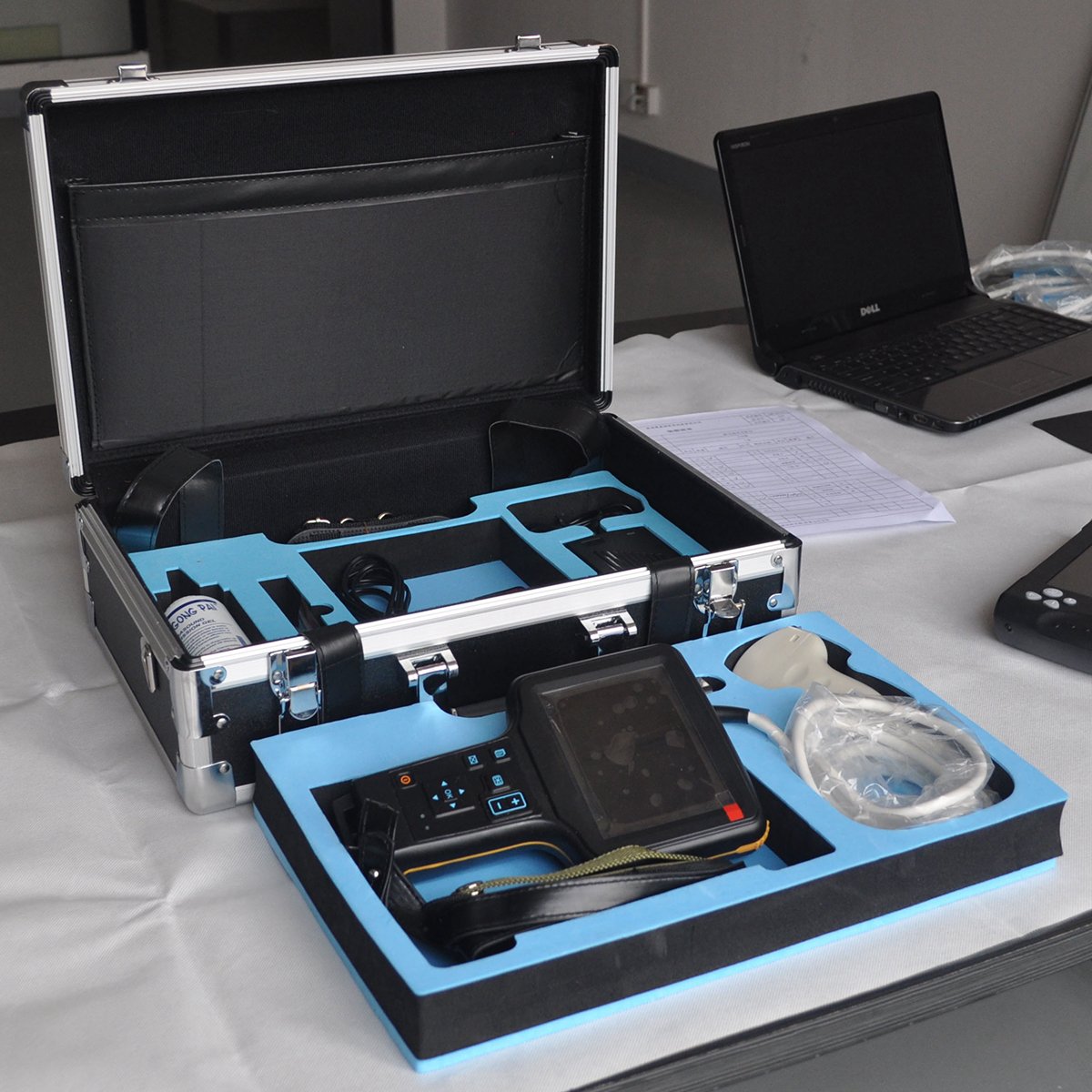

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | MDLVU31 Portable Ultrasound Scanner with integrated 3000mAH battery | 1 |
| Convex Probe | 3.5MHz electronic convex probe with cable assembly | 1 |
| TFT LCD Screen | 5-inch display with adjustable brightness | 1 |
| Storage Device | 28GB U-Disk for image archiving | 1 |
| Power Cable | USB charging cable for battery recharge | 1 |
| Carrying Case | Protective case for field transport | 1 |
| User Manual | Multilingual operation and maintenance guide | 1 |
