MDL
Veterinary Handheld Ultrasound Scanner MDLVU21
4.5(2 reviews)- Hand-held design for easy portability
- Clear and exquisite imaging with a 5" FTT-LED screen
- Automatic calculation of back-fat and lean percentage for swine
- Multiple output options including USB 2.0 and video
- Long battery life for over 180 minutes of continuous use
- Provides various measurements such as distance, circumference, and heart rate
- Comes with standard accessories including a charger, probe, gel, and user manual
- SKU
- MDLVU21
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Veterinary Ultrasound

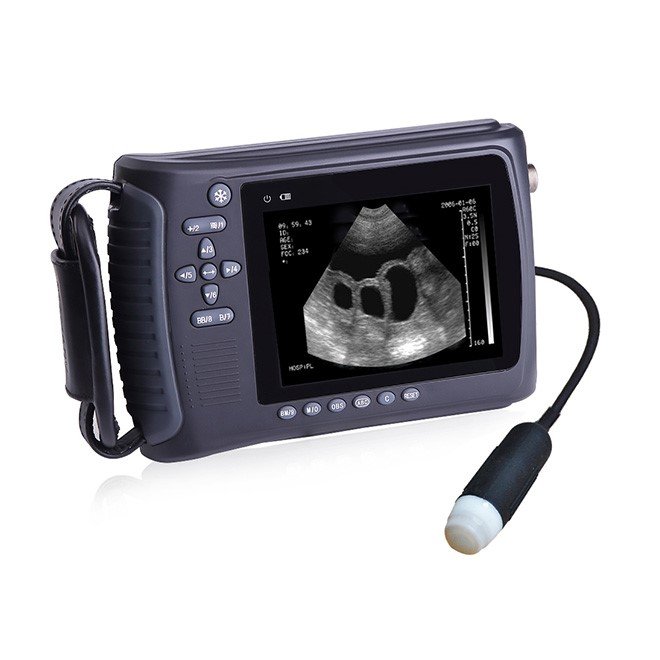

MDLVU21 Handheld Ultrasound Scanner
Portable, high-resolution ultrasound imaging for livestock and companion animal diagnostics. The MDLVU21 delivers real-time B-mode imaging with automated body composition analysis, ideal for field and clinical use across swine, ovine, caprine, and canine applications.
Ordering Ref.
MDLVU21
ConfigurationHandheld, battery-powered
MaterialAluminium alloy body; 3.5 MHz sector probe
ApplicationLivestock & companion animal imaging
Optional 5.0 MHz waterproof probe, video printer, and additional batteries available. OEM customisation on request.
Clinical overview
The MDLVU21 is a compact, handheld ultrasound scanner engineered for rapid, portable diagnostics in veterinary practice. Its lightweight design and integrated lithium battery enable extended field work—ideal for livestock assessment, breeding evaluation, and clinical imaging in remote or on-farm settings. The 5" high-brightness TFT-LCD display ensures clear image quality in variable lighting conditions.
Unique to the MDLVU21 is its automated back-fat and lean percentage calculation for swine, streamlining production management and carcass quality assessment. Multiple display modes (B, B+B, B+M, M, 4B) and comprehensive measurement tools support diverse diagnostic workflows across species.
Key features & surgeon benefits
Portability
Field-Ready Design
- Lightweight handheld form factor (800 g)
- Integrated 2600 mAh lithium battery; 3+ hours continuous operation
- AC/DC charging flexibility; optional car charger available
Imaging Quality
High-Resolution Diagnostics
- 5" TFT-LCD display with high brightness and contrast
- 256 gray-scale imaging; lateral resolution ≤4 mm (depth ≤80 mm)
- Scan depth 120–190 mm; blind zone ≤8 mm
Automation
Swine Production Analytics
- Automatic back-fat and lean percentage calculation
- Integrated measurement tools: distance, area, volume, heart rate, gestation age
- Image processing: histogram, colour encode, gamma, smoothing
Connectivity
Data Management & Output
- USB 2.0 and video (PAL-D, NTSC) output for workstation integration
- Full-screen annotation: date, time, animal name, sex, age
- Optional video printer for on-site image documentation
Technical specifications
| Indications | Swine, ovine, goat, canine, and other species |
|---|---|
| Display | 5.0" TFT-LCD; 256 gray scale |
| Display modes | B, B+B, B+M, M, 4B |
| Scan depth | 120–190 mm (displayed depth 192 mm) |
| Maximum detection depth | ≥140 mm |
| Lateral resolution | ≤4 mm (depth ≤80 mm); ≤5 mm (80 < depth ≤130 mm) |
| Axial resolution | ≤2 mm (depth ≤80 mm) |
| Blind zone | ≤8 mm |
| Geometric precision | Horizontal ≤20 mm; Vertical ≤10 mm |
| Standard probe | 3.5 MHz sector probe |
| Image processing | Histogram, colour encode, gamma, image smoothing |
| Measurements | Distance, circumference, area, volume, heart rate, gestation age |
| Connectivity | USB 2.0; Video output (PAL-D, NTSC) |
| Battery | 2600 mAh lithium-ion; continuous operation ≥3 hours |
| Power supply | AC adapter: 100–110V/240V~, 50–60 Hz, 70 VA |
| Dimensions | 230 mm (L) × 120 mm (W) × 38 mm (H) |
| Weight | 800 g (net) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Scanner Body | MDLVU21 main unit with integrated controls | 1 |
| Li-ion Battery | 2600 mAh rechargeable battery | 1 |
| 3.5 MHz Sector Probe | Standard ultrasound transducer | 1 |
| Charger with Wires | AC adapter and charging cable set | 1 |
| Wrap Bag | Protective carrying bag | 1 |
| USG Gel | Ultrasound coupling gel bottle | 1 |
| Transportation Case | Hard-shell protective case | 1 |
| User Manual | Instruction and operation guide | 1 |
