Steam Autoclave : Microwave Steam Sterilizer MDLPS08
- Automatic steam autoclave with different chamber volumes available (35L, 50L, 75L, 100L)
- Working pressure: 0.22 MPa for most models, 0.14 MPa for the 100HD model
- Working temperature: 134β for most models, 126β for the 100HD model
- Max working pressure: 0.23 Mpa for most models, 0.165 Mpa for the 100HD model
- Heat average: Maintains temperature within β€Β±1β
- Timer function: Ranges from 0 to 99 minutes or 0 to 99 hours and 59 minutes
- Power options: 2.5Kw, 3Kw, or 4.5Kw depending on the model
- Compact design with overall dimensions ranging from 450Γ450Γ1010(mm) to 540Γ560Γ1250(mm)
- Easy to transport with transport dimensions provided for each model
- SKU
- MDLPS08
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- β Worldwide shipping
Steam Autoclave: Microwave Steam Sterilizer MDLPS08
Advanced microwave steam sterilizer engineered for efficient, reliable sterilization across diverse clinical and laboratory settings. Four flexible models with chamber volumes from 35L to 100L, automatic operation, and precise temperature control up to 134Β°C ensure consistent performance and optimal throughput.
Clinical overview
The MDLPS08 Microwave Steam Sterilizer is a fully automatic, high-performance sterilization system designed for hospitals, surgical centres, dental practices, and laboratory facilities. With four configurable models (35HD, 50HDI, 75HD, 100HD), it accommodates varying workload demands and space constraints while maintaining consistent, reliable sterilization cycles.
Engineered with precision temperature control, adjustable timer settings (0β99 minutes or 0β99 hours 59 minutes), and working pressures optimized for each model, the MDLPS08 delivers thorough sterilization of surgical instruments, endoscopes, laboratory equipment, and medical devices. Compact, stable design with net weights ranging from 56 kg to 85 kg ensures safe, efficient operation in any clinical environment.
Key features & surgeon benefits
Four Models for Every Setting
- Chamber volumes: 35L, 50L, 75L, 100L
- Compact footprint with space-efficient design
- Scalable to match facility throughput requirements
Fully Automatic Operation
- Automatic cycle management ensures consistent results
- Customizable timer: 0β99 min or 0β99 h 59 min
- Temperature adjustment range 105β134Β°C (105β126Β°C for 100HD)
Precision & Reliability
- Heat uniformity β€Β±1Β°C across chamber
- Working pressure: 0.22 MPa (35HDβ75HD) or 0.14 MPa (100HD)
- Maximum working pressure: 0.23 MPa or 0.165 MPa
Efficient & Durable
- Power consumption: 2.5β4.5 kW (AC 110V/220V, 50/60Hz)
- Robust construction: net weight 56β85 kg
- 2-year manufacturer warranty with lifetime support
Technical specifications
| Indications | Sterilization of surgical instruments, laboratory equipment, endoscopes, and medical devices |
|---|---|
| Models available | 35HD, 50HDI, 75HD, 100HD (automatic) |
| Chamber volumes | 35L (Ο318Γ450 mm), 50L (Ο340Γ550 mm), 75L (Ο400Γ600 mm), 100L (Ο440Γ650 mm) |
| Working temperature | 134Β°C (35HDβ75HD); 126Β°C (100HD) |
| Temperature adjustment range | 105β134Β°C (35HDβ75HD); 105β126Β°C (100HD) |
| Working pressure | 0.22 MPa (35HDβ75HD); 0.14 MPa (100HD) |
| Max working pressure | 0.23 MPa (35HDβ75HD); 0.165 MPa (100HD) |
| Heat uniformity | β€Β±1Β°C |
| Timer settings | 0β99 minutes or 0β99 hours 59 minutes |
| Power supply | 2.5 kW (35HD), 3 kW (50HDI), 4.5 kW (75HD, 100HD) / AC 110V/220V, 50/60Hz |
| Overall dimensions | 35HD: 450Γ450Γ1010 mm; 50HDI: 510Γ470Γ1130 mm; 75HD: 560Γ560Γ1120 mm; 100HD: 540Γ560Γ1250 mm |
| Net weight | 35HD: 56 kg; 50HDI: 68 kg; 75HD: 80 kg; 100HD: 85 kg |
| Sterilisation method | Steam sterilization (microwave-assisted) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Sterilizer unit | Complete MDLPS08 autoclave with stainless steel chamber and automatic control system | 1 |
| Power cable | AC 110V/220V, 50/60Hz connection cable | 1 |
| User manual | Operating instructions and maintenance guide | 1 |
| Warranty certificate | 2-year manufacturer warranty documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss model selection, pricing, delivery timelines, and customisation options for your facility. We offer flexible configurations and volume discounts for healthcare networks and institutional buyers.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty β all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork β usually within one business day.
Customer reviews
No reviews yet β be the first to share your experience.
Related products
See all β
Large Autoclave Horizontal MDLPS23
- Large autoclave with a capacity ranging from 150L to 500L - Operating pressure of 0.22MPa and sterilization temperature of 134β - Adjustable sterilization and drying times from 0 to 60 minutes - Precise heat control with a deviation of β€Β±1β - Available in power options of 9KW to 18KW at 380V 50Hz - Compact dimensions for easy placement in medical facilities - Sturdy construction with transport dimensions for easy relocation
Large Rectangular Autoclave Horizontal MDLPS24
- Large rectangular autoclave ideal for medical facilities - Sterilizing chamber volume options: 150L, 200L, 280L - Working pressure: 0.22 MPa - Working temperature: 134β - Temperature adjustment range: 40β - 134β - Time of sterilization: 0-99 min - Time of drying: 0-99 min - Power options: 9KW/380V, 12KW/380V - Precise heat average of β€Β± 2β
Autoclave Sterilizer MDLPS34
- Sterilize large volumes efficiently with the Autoclave Sterilizer MDLPS34 - Available in various chamber sizes: 150L, 200L, 280L, and 400L - Works at a pressure of 0.22MPa and a temperature of 134β - Adjustable temperature range from 40β to 134β - Sterilization time can be set from 0 to 99 minutes - Drying time adjustable from 0 to 99 minutes - Ensures heat average of β€Β±2β for precise sterilization
Autoclave Vertical : Steam Autoclave MDLPS06
- The Autoclave Vertical Steam Autoclave MDLPS06 is available in chamber volumes of 50L, 75L, 35L, and 100L to suit different needs. - It operates at a working pressure of 0.22MPa and a working temperature of 134β for effective sterilization. - The autoclave provides a heat average of β€Β±1β, ensuring uniform sterilization. - Features a timer that allows for precise sterilization time control ranging from 0 to 99 minutes. - Temperature adjustment is possible within the range of 105 to 134β for customized sterilization processes. - Equipped with a power capacity of 3KW to 4.5KW, depending on the chamber volume, for efficient operation. - The autoclave has overall dimensions ranging from 690*470*1140(mm) to 730*510*1270(mm), making it compact and space-saving.
Vertical Autoclave : Steam Sterilizer Autoclave MDLPS07
- The Vertical Autoclave MDLPS07 is a steam sterilizer autoclave designed for efficient sterilization. - With a sterilizing chamber volume of 28L, it can accommodate various medical instruments. - It operates at a working pressure of 0.22MPa and a working temperature of 134β. - The temperature can be adjusted within the range of 105-134β for different sterilization needs. - Equipped with a 2KW power supply, it runs on AC 220V at 50Hz for reliable performance. - The autoclave ensures heat distribution with a heat average of β€Β±1β. - With dimensions of 400Γ370Γ700mm, it is compact yet spacious for effective sterilization processes.
Autoclave Steam Sterilizer | Autoclave Vertical MDLPS09
- The Autoclave Steam Sterilizer MDLPS09 is available in chamber volumes of 35L, 50L, 75L, and 100L. - It operates at a working pressure of 0.22MPa and a working temperature of 134β. - The autoclave has a max working pressure of 0.23 Mpa and ensures heat average of β€Β±1β. - Features a timer that can be set from 0 to 99 minutes or 0 to 99 hours and 59 minutes. - Temperature adjustment range is from 0 to 134β. - Power options include 2.5KW/AC220V.50Hz, 3KW/AC220V.50Hz, and 4.5KW/AC220V.50Hz. - Dimensions range from 600Γ410Γ1030(mm) to 730Γ500Γ1170(mm) for transport.

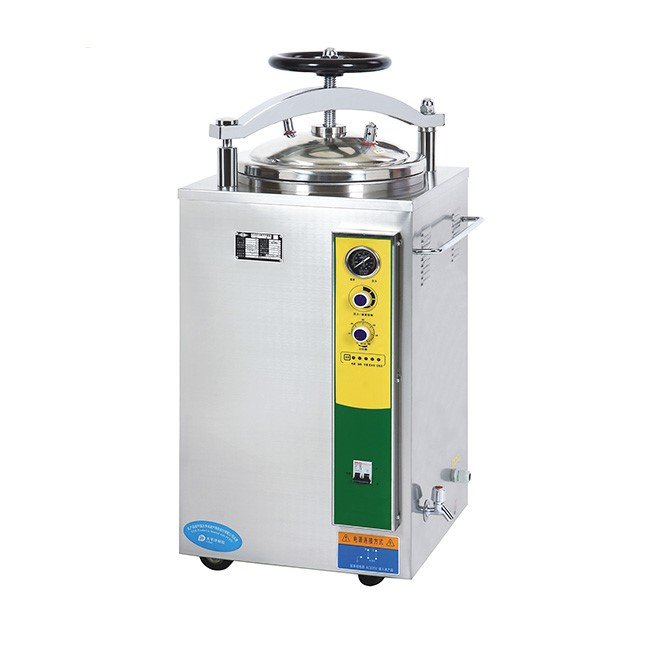

Steam Sterilizer Autoclave | Vertical Autoclave MDLPS10 35L
