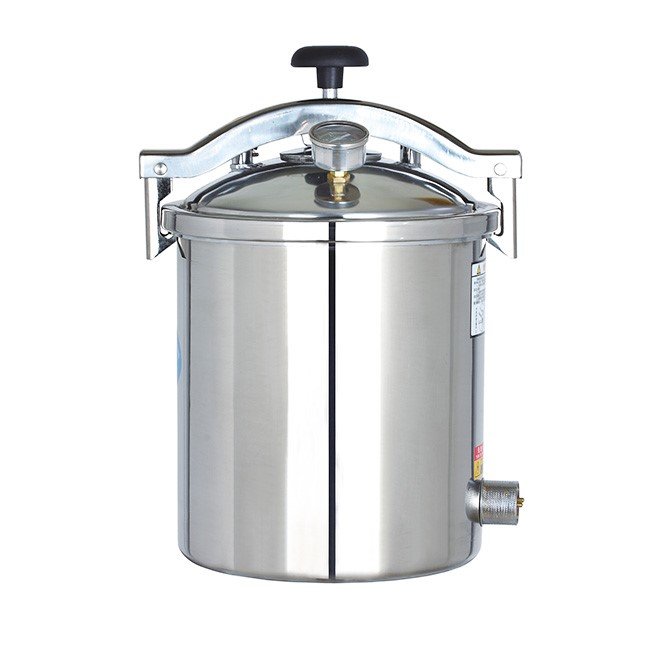

Small Autoclave MDLPS14
- Small Autoclave MDLPS14 is available in sterilizing volumes of 12L, 18L, and 24L.
- It operates at a working pressure of 0.14-0.16MPa and a temperature of 126℃.
- The autoclave has a maximum safety pressure of 0.165Mpa.
- Power supply required is AC220V, 50Hz, with a power rating of 2KW.
- Compact dimensions ranging from 360×360×520mm to 420×420×650mm.
- The autoclave has a lightweight design with weight varying from 10-16 KG.
- Ideal for small medical facilities and laboratories.
- SKU
- MDLPS14
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Small Autoclave MDLPS14
Compact, efficient steam sterilization system designed for medical and laboratory environments. Available in three sterilizing volumes (12L, 18L, 24L) with consistent 126°C operating temperature and reliable pressure control for dependable sterilization results.
Clinical overview
The MDLPS14 Small Autoclave is a compact, user-friendly sterilization system engineered for medical clinics, dental practices, and laboratory facilities requiring reliable steam sterilization. With three capacity options (12L, 18L, 24L), it accommodates varying workload demands while maintaining consistent 126°C operating temperature and precise pressure control (0.14–0.16 MPa). The robust stainless steel construction ensures durability and long service life, while energy-efficient AC110V/220V/50/60Hz operation (2KW) minimizes operational costs.
Designed for ease of use and safety, the MDLPS14 features maximum safety pressure monitoring (0.165 MPa) and straightforward controls suitable for busy clinical environments. Whether sterilizing surgical instruments, dental burs, or laboratory equipment, this autoclave delivers consistent, effective sterilization results with minimal training required.
Key features & surgeon benefits
Three Sterilizing Volumes
- 12L chamber (240×200 mm) for compact spaces
- 18L chamber (280×265 mm) for standard workflows
- 24L chamber (280×390 mm) for high-volume facilities
Reliable Sterilization
- Consistent 126°C working temperature
- Precise pressure control: 0.14–0.16 MPa
- Maximum safety pressure: 0.165 MPa for operator protection
Cost-Effective Operation
- Energy-efficient 2KW power consumption
- AC110V/220V, 50/60Hz standard electrical supply
- Compact footprint reduces facility space requirements
Robust & User-Friendly
- Durable stainless steel construction
- Intuitive controls for minimal training
- Lightweight design (10–14 kg net weight)
Technical specifications
| Indications | Medical and laboratory sterilization |
|---|---|
| Sterilizing volumes | 12L (240×200 mm), 18L (280×265 mm), 24L (280×390 mm) |
| Working pressure | 0.14–0.16 MPa |
| Working temperature | 126°C |
| Maximum safety pressure | 0.165 MPa |
| Power supply | AC110V/220V, 50/60Hz / 2KW |
| Dimensions (12L / 18L / 24L) | 360×360×520 mm / 410×410×550 mm / 420×420×650 mm |
| Weight (G.W. / N.W.) | 12/10 kg (12L), 13/11 kg (18L), 16/14 kg (24L) |
| Material | Stainless steel chamber |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Autoclave unit | Complete sterilization chamber with controls and safety features | 1 |
| Power cord | AC110V/220V, 50/60Hz connection cable | 1 |
| User manual | Operating instructions and maintenance guidelines | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your sterilization requirements, request detailed specifications, or arrange a product demonstration. We offer flexible ordering options and support for medical facilities and laboratories worldwide.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
