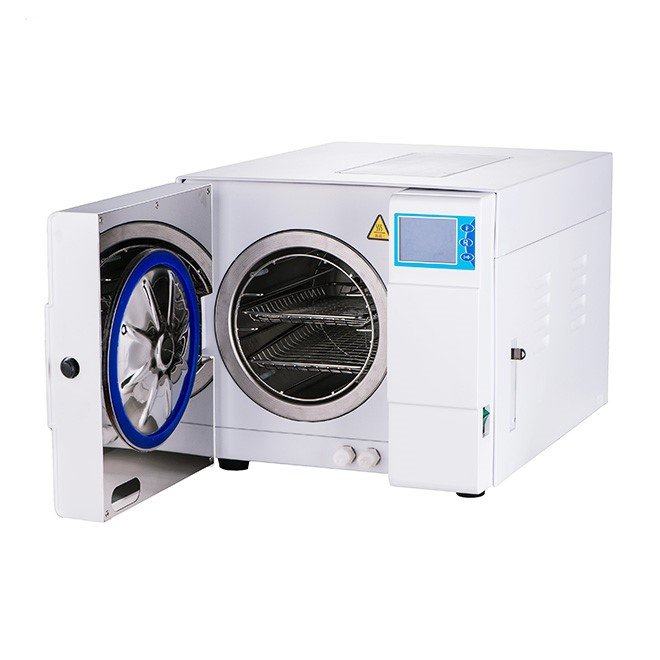

- The Autoclave Steam Sterilizer MDLTA01 has a chamber volume of 8 liters
- It comes with 2 trays for convenient sterilization
- Operates at a power of 1500W with a voltage of 220/110V and a frequency of 50/60Hz
- Compact design with overall dimensions of 370x345x565 mm
- Weighs 34.5 Kgs, making it easy to move and transport
- Offers various sterilization programs for different types of materials such as solid, liquid, wrapped, textile, prion, B&D test, helix test
- Features precise temperature control up to 134℃ and pressure up to 210 Mpa
Advanced steam sterilization technology for medical, dental, and laboratory applications. The MDLTA01 delivers reliable, efficient sterilization with an 8-liter chamber capacity, thirteen specialized programs, and dual voltage compatibility for global deployment.
The Autoclave Steam Sterilizer MDLTA01 is an advanced medical sterilization system engineered to meet the demanding requirements of hospitals, clinics, dental practices, and research laboratories. With its 8-liter chamber capacity and compact footprint, this autoclave provides optimal sterilization performance while maintaining a space-efficient design suitable for diverse clinical environments. The unit's sophisticated control system manages thirteen distinct sterilization cycles, ensuring complete microbial destruction including bacterial spores, vegetative bacteria, fungi, and viruses across all load types.
Designed with versatility and clinical workflow efficiency in mind, the MDLTA01 features rapid cycle times ranging from 15 to 30 minutes depending on the program selected. The dual voltage capability (220/110V, 50/60Hz) ensures global compatibility, while the 1500-watt power consumption provides efficient heating without excessive energy demands. Integrated validation test programs—including Bowie-Dick, Helix, and vacuum leak tests—enable routine performance verification and quality assurance monitoring, supporting compliance with sterilization standards and accreditation requirements.
| Indications | Surgical instruments, dental equipment, laboratory glassware, wrapped items, textiles, liquids, prion-contaminated instruments |
|---|---|
| Sizes / range | 8-liter chamber; Ø170 × 320 mm; accommodates 2 stainless steel trays |
| Material | Stainless steel chamber; perforated trays for optimal steam penetration |
| Sterilisation | Steam sterilization at 121°C and 134°C; 13 programs including solid, liquid, wrapped, textile, prion, drying, and validation cycles |
| Packaging | Individual instrument packaging or wrapped sets; drying cycle removes residual moisture |
| Warranty | 2 Year Manufacturer Warranty |
| Voltage | 220/110V dual voltage with automatic detection |
| Frequency | 50/60 Hz |
| Power Consumption | 1500 watts |
| Overall Dimensions | 370 × 345 × 565 mm (W × H × D) |
| Weight | 34.5 kg |
| Operating Pressure | 110–210 kPa |
| Cycle Times | 4–30 minutes depending on program; fastest solid cycle 15–25 minutes at 134°C |
| Drying Function | Adjustable 1–20 minutes |
| Item | Description | Qty |
|---|---|---|
| Sterilization Chamber | 8-liter stainless steel chamber with integrated heating and pressure control | 1 |
| Stainless Steel Trays | Perforated trays for optimal steam penetration and load organization | 2 |
| Control Panel | Digital interface with program selection, temperature display, and cycle monitoring | 1 |
| Safety Valve | Pressure relief and safety mechanisms for operator protection | 1 |
| Vacuum System | Air removal system for wrapped items and porous loads | 1 |
| Temperature Sensor | Precision temperature monitoring and control system | 1 |
| Pressure Gauge | Chamber pressure monitoring and display | 1 |
| Drain Valve | Condensate removal and chamber drainage | 1 |
Contact our sales team to discuss your sterilization requirements, request detailed specifications, or schedule a product demonstration. We provide comprehensive support for equipment selection, installation, training, and ongoing technical assistance.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
