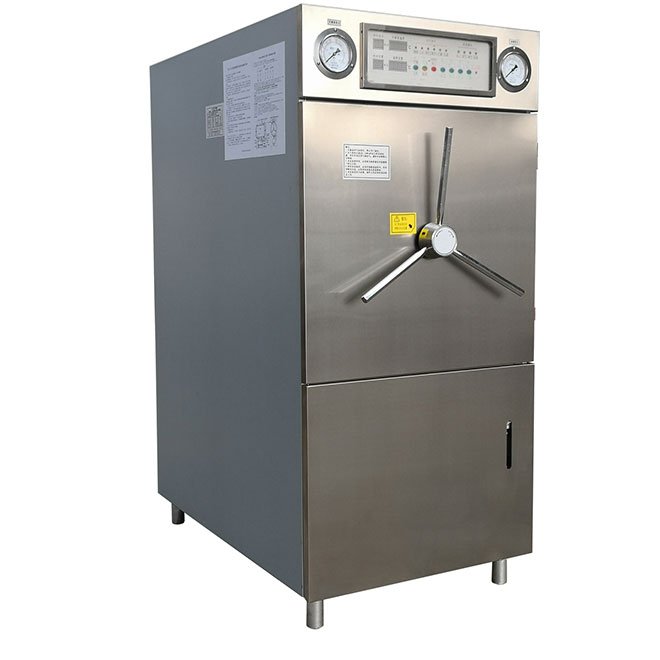

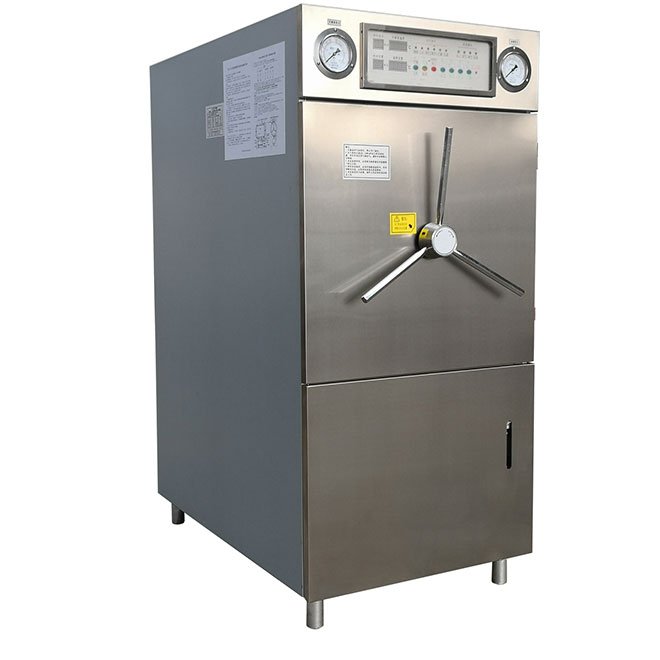

Automatic Control Pressurized Steam Sterilizer Machine MDLTA16
- Sterilizing chamber dimensions: φ60×100 cm, Volume: 0.3 m3
- Operating pressure range: 0.02~0.21 MPa, Temperature range: 105~134 ℃
- Electric heating tube power: 12 kW
- Total weight: 320 kg
- External dimensions: 80×140×175 cm
- Efficient steam sterilization for medical instruments
- User-friendly automatic control feature
- Suitable for medical facilities and laboratories
- SKU
- MDLTA16
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Automatic Control Pressurized Steam Sterilizer Machine MDLTA16
High-efficiency automatic control pressurized steam sterilizer designed for medical, dental, and laboratory applications. Features a 0.3 m³ chamber with precise temperature and pressure control, delivering rapid and reliable sterilization across diverse instrument types.
Clinical overview
The MDLTA16 is a fully automatic pressurized steam sterilizer engineered for high-volume sterilization in medical, dental, and laboratory settings. With a 0.3 m³ chamber and precise automatic control, it delivers consistent, reliable sterilization across a wide range of instruments and materials. The system operates across a flexible temperature range of 105–134°C and adjustable pressure from 0.02–0.21 MPa, accommodating diverse sterilization protocols and material sensitivities.
Equipped with a powerful 12 kW electric heating tube, the MDLTA16 achieves rapid heat-up and cycle completion, minimizing turnaround time without compromising sterility assurance. Its robust construction (320 kg total weight) and compact footprint (80×140×175 cm external dimensions) make it suitable for both large centralized sterilization departments and smaller clinical facilities. Automatic control logic eliminates manual intervention, reducing operator error and ensuring compliance with sterilization standards.
Key features & surgeon benefits
Generous Chamber Volume
- 0.3 m³ sterilization chamber accommodates large instrument sets
- φ60×100 cm dimensions enable efficient batch processing
- Flexible loading for diverse instrument types and configurations
Rapid & Reliable Sterilization
- 12 kW heating power ensures fast temperature ramp-up
- Automatic control maintains precise pressure and temperature throughout cycle
- Wide operating range (105–134°C, 0.02–0.21 MPa) supports multiple protocols
Simplified Operation
- Fully automatic cycle control reduces operator training requirements
- Minimal manual intervention lowers risk of human error
- Compact footprint (80×140×175 cm) fits standard sterilization areas
Built for Longevity
- Robust stainless steel construction resists corrosion and wear
- 320 kg weight ensures stability during operation
- 2-year manufacturer warranty with lifetime technical support
Technical specifications
| Indications | Medical, dental, and laboratory instrument sterilization |
|---|---|
| Chamber dimensions | φ60×100 cm |
| Chamber volume | 0.3 m³ |
| Operating pressure range | 0.02–0.21 MPa |
| Operating temperature range | 105–134°C |
| Heating power | 12 kW electric heating tube |
| External dimensions | 80×140×175 cm |
| Total weight | 320 kg |
| Material | Stainless steel |
| Sterilisation method | Pressurized steam |
| Control system | Automatic control |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| MDLTA16 Sterilizer Unit | Complete automatic pressurized steam sterilizer with control panel and heating system | 1 |
| Power cord and connectors | Electrical connection kit for 12 kW heating tube | 1 |
| User manual and documentation | Operating instructions, maintenance schedule, and safety guidelines | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your sterilization requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery and installation support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
