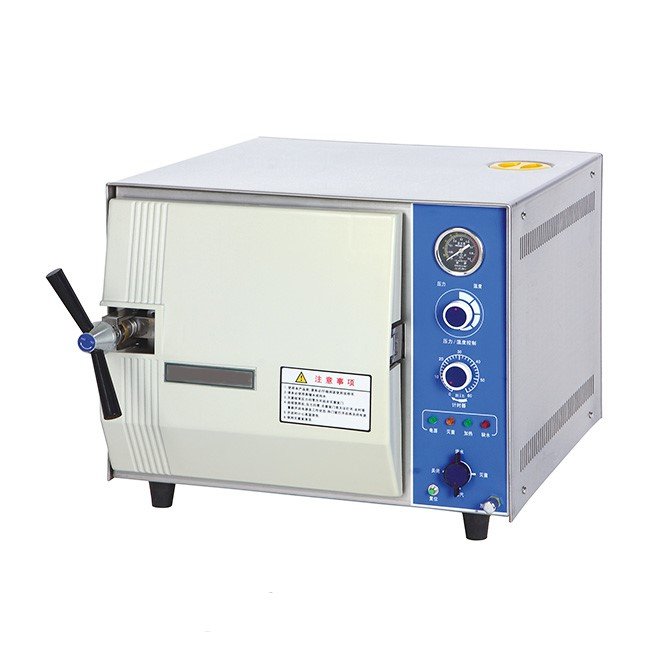

Benchtop Autoclave MDLPS21
- Sterilizing chamber volume of 20L (XA20J) or 24L (XA24J)
- Maximum working pressure of 0.22Mpa
- Maximum working temperature of 134℃
- Adjustable temperature range from 105-134℃
- Timer setting from 0-60 min
- Chamber temperature equalization of ≤±1℃
- Source power of 1.5KW/AC 220V50Hz (AC110V 60HZ)
- Comes with sterilizing plates sized at 340×200×30mm (3 pieces) or 400×200×30mm (3 pieces)
- Compact dimensions of 480×480×384 mm for XA20J model and 580×480×384 mm for XA24J model
- SKU
- MDLPS21
- Brand
- MDL
- Manufactured by
- MedicalDeviceLab
- Availability
- In stock
- ✓ Worldwide shipping
Benchtop Autoclave MDLPS21
Efficient benchtop sterilization with dual chamber options (20L and 24L). Precise temperature control from 105–134℃, rapid cycle times, and compact design for laboratory and clinical environments. Reliable performance with maximum working pressure of 0.22 MPa and chamber temperature uniformity within ±1℃.
Clinical overview
The Benchtop Autoclave MDLPS21 delivers reliable steam sterilization for laboratory and clinical applications. Available in two chamber volumes (20L and 24L), it provides precise temperature control across the 105–134℃ range with exceptional chamber uniformity (±1℃). The adjustable timer (0–60 minutes) accommodates diverse sterilization protocols, while the maximum working pressure of 0.22 MPa ensures consistent, safe operation.
Designed for space-constrained environments, the MDLPS21 combines compact dimensions with robust performance. Three sterilizing plates are included with each unit, and the lightweight construction facilitates easy installation and relocation. Power flexibility (AC 220V 50Hz or AC 110V 60Hz) supports global deployment across varied facility infrastructures.
Key features & surgeon benefits
Dual Chamber Options
- 20L (XA20J) or 24L (XA24J) sterilizing chamber
- Flexible sizing for small to mid-scale operations
- Consistent chamber dimensions (φ250×420mm)
Temperature Control
- Adjustable range: 105–134℃
- Chamber uniformity within ±1℃
- Reliable maximum working pressure: 0.22 MPa
Flexible Cycle Management
- Adjustable timer: 0–60 minutes
- Rapid cycle completion for high-throughput labs
- Three sterilizing plates included per unit
Compact & Efficient
- Benchtop footprint: 480×480×384 mm (XA20J) or 580×480×384 mm (XA24J)
- Lightweight: 38–44 kg net weight
- Power efficient: 1.5 KW consumption
Technical specifications
| Indications | Laboratory and clinical sterilization of instruments, media, and materials |
|---|---|
| Sizes / range | XA20J (20L, φ250×420mm) and XA24J (24L, φ250×420mm) |
| Material | Stainless steel chamber with sterilizing plates |
| Sterilisation | Steam sterilization; temperature range 105–134℃; timer 0–60 minutes; maximum working pressure 0.22 MPa |
| Packaging | XA20J: 700×580×500 mm; XA24J: 800×580×500 mm |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Sterilizing plate (XA20J) | 340×200×30 mm stainless steel plate | 3 |
| Sterilizing plate (XA24J) | 400×200×30 mm stainless steel plate | 3 |
| Autoclave unit | Complete benchtop autoclave with chamber, heating element, and control panel | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your sterilization requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery options and comprehensive post-sale support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
