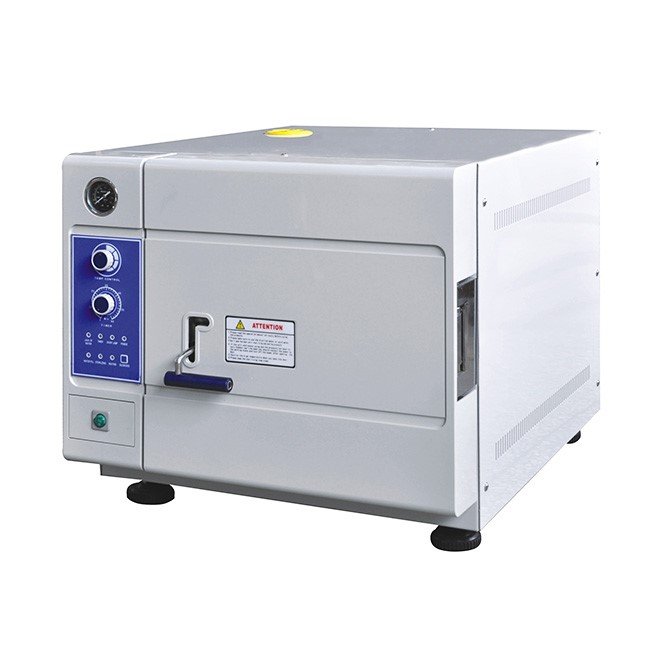

- The Portable Sterilizer MDLPS29 has a sterilizing chamber volume of 35L (φ300×500 mm).
- It operates at a working pressure of 0.22Mpa and a working temperature of 134℃.
- The temperature can be adjusted between 105-134℃ with a timer range of 0-60 min.
- The device provides heat average of ≤ ± 1℃ for precise sterilization.
- It has a power rating of 2.7 KW and operates on AC220V 50Hz.
- Comes with sterilizing plates sized at 400×200×30 mm (4 pieces).
- The dimensions of the sterilizer are 730×550×510 mm with a package dimension of 820×680×650 mm.
Advanced portable sterilization system engineered for clinical and laboratory environments. Features multiple chamber volume options, precise temperature control, and efficient steam sterilization at 134°C with working pressure of 0.22 MPa. Compact, lightweight design ensures easy transport and installation in diverse healthcare settings.
The Portable Sterilizer MDLPS29 delivers reliable steam sterilization for surgical instruments, laboratory equipment, and medical devices in clinical and hospital environments. With chamber volumes ranging from 20L to 50L, this system accommodates diverse sterilization loads while maintaining consistent temperature control and pressure management. The adjustable temperature range (105–134°C) and programmable timer (0–60 minutes) enable precise sterilization protocols tailored to specific instrument types and material compositions.
Engineered for portability and efficiency, the MDLPS29 combines compact dimensions (up to 770×600×540 mm) with robust construction, making it suitable for operating rooms, central sterile processing departments, dental clinics, and research laboratories. The heat uniformity of ±1°C ensures reproducible sterilization outcomes, while the 2.7 kW power specification and AC110V/220V 50/60Hz operation integrate seamlessly into standard clinical infrastructure.
| Indications | Sterilization of surgical instruments, laboratory equipment, and medical devices |
|---|---|
| Chamber volumes | 20L, 24L, 35L, 50L |
| Working pressure | 0.22 MPa |
| Working temperature | 134°C |
| Temperature adjustment range | 105–134°C |
| Timer range | 0–60 minutes |
| Heat uniformity | ±1°C |
| Power specification | 2.7 kW / AC110V/220V 50/60Hz |
| Dimensions (max) | 770×600×540 mm |
| Weight (max) | 105 kg (gross); 86 kg (net) |
| Sterilizing plates | 400×200×30 mm (4 pieces) or 500×250×30 mm (4 pieces) |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Sterilizing chamber | Stainless steel chamber (35L or 50L option) | 1 |
| Sterilizing plates | 400×200×30 mm (35L) or 500×250×30 mm (50L) | 4 |
| Control panel | Temperature and timer controls with display | 1 |
| Safety valve | Pressure relief and safety mechanism | 1 |
| Power cord | AC110V/220V 50/60Hz connection cable | 1 |
Contact our sales team to discuss chamber volume options, customization requirements, and delivery timelines for the Portable Sterilizer MDLPS29. We provide comprehensive support and technical guidance for clinical implementation.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
